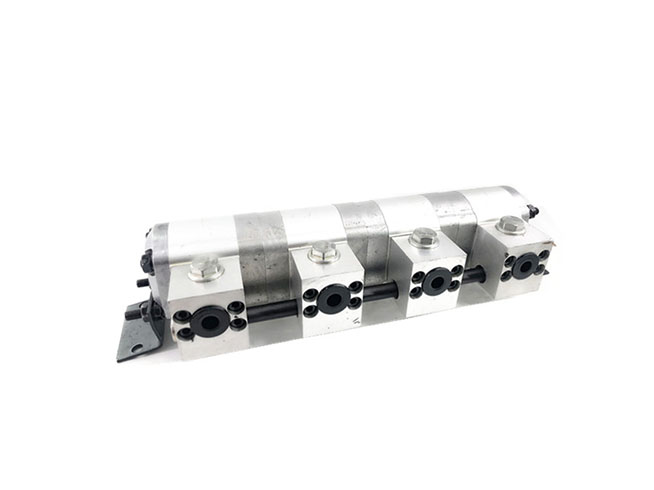

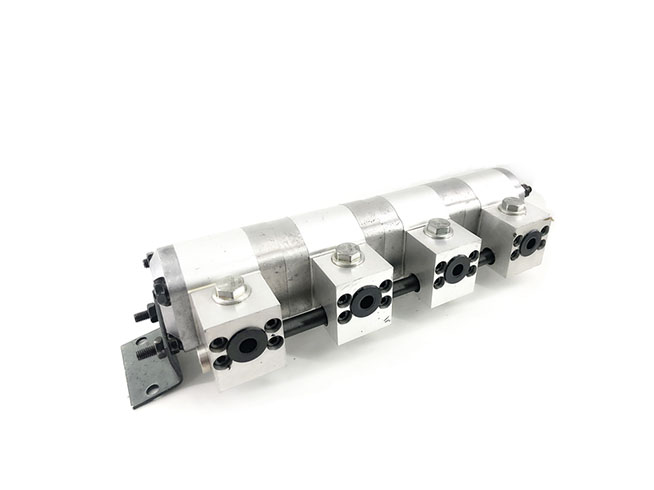

GRH has three series of flow divider, 1FDF, 2FDF and 3FDF, with a displacement of 1.6~70ml/r. Two or more gear motors can be connected by a coupling to form a gear type flow divider, which can ensure the synchronous operation of the actuators and obtain higher synchronization accuracy. It can be integrated with relief valve, one-way valve, speed control valve, to protect the system, oil replenishment and other functions. GRH flow divider accuracy can reach ±1.5%-±2%.
? Displacement 1.6~9ml/r, pressure loss 16~19bar
? Ensure synchronous operation of actuators
? High synchronization accuracy
Specification
| Displacement
(ml/r) |
SAE Port | Minimum Flow | Maximum Flow | Cont. Diff Between Pressure Inlet/Outlet | |
| Inlet | Outlet | ||||
| 2.0 | G1/2 | G3/8 | 1.0 | 4.0 | 200 |
| 3.0 | G1/2 | G3/8 | 1.5 | 6.0 | 200 |
| 4.1 | G1/2 | G3/8 | 2.1 | 8.2 | 200 |
| 5.1 | G1/2 | G3/8 | 2.55 | 10.2 | 200 |
| 6.1 | G1/2 | G3/8 | 3.05 | 12.2 | 200 |
| 7.0 | G1/2 | G3/8 | 3.50 | 14.0 | 200 |

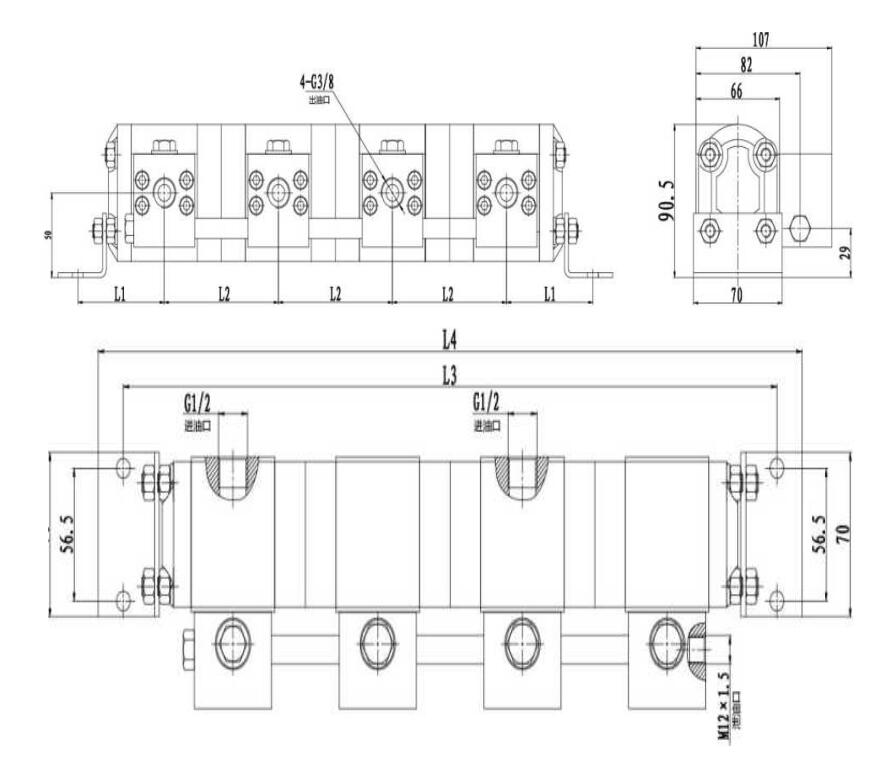

Dimensions
Applications
GRH?1FDF gear divider is widely used in industrial equipment, storage equipment, agricultural machinery, etc.
Application
