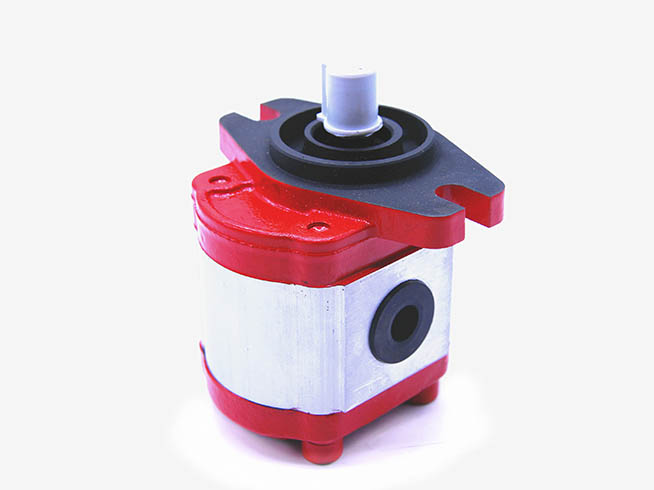

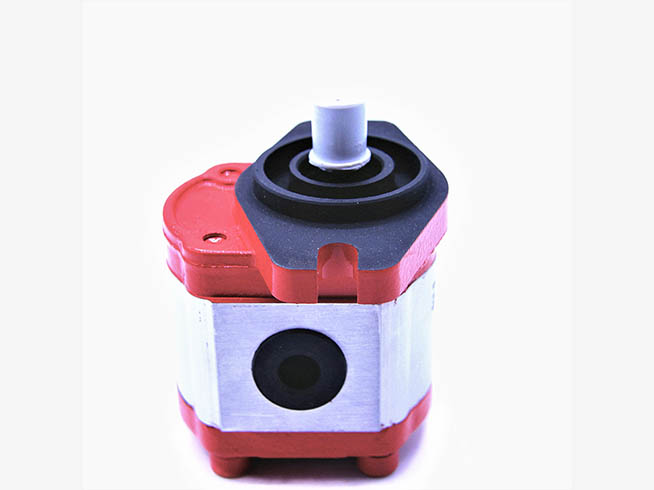

GRH has 1, 2, 2.5, 3, 3, 5, series gear motors, and the displacement ranges from 1.1 to 115ml/r. It has strong anti-contamination performance, simple structure and high reliability; it has the advantages of automatic compensation of axial clearance, wear resistance and longer service life.
Displacement range 1.1-8.5ml/r
Higher carrying capacity and longer service life
With automatic compensation of axial clearance
Specification
| Displacement(ml/r) | 1.3 | 2 | 2.7 | 3.4 | 4.1 | 5.1 | 6.1 | 6.5 | 7 | 7.5 | 8.5 |
| L1 | 42 | 43 | 43 | 45 | 46 | 47.5 | 49 | 49.5 | 50 | 50.5 | 52 |
| L | 82 | 84 | 86 | 88 | 90 | 93 | 96 | 98 | 100 | 102 | 103 |

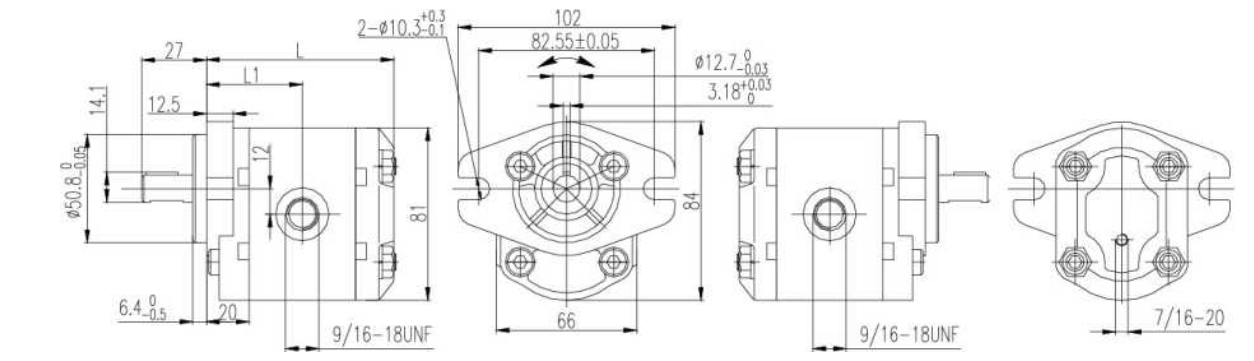

Dimensions
The 1MF series gear motor drives the gears with hydraulic oil, outputs power from the shaft end, and is mostly used for fan cooling.
Application
_副本-2.jpg)
2_副本.jpg)
