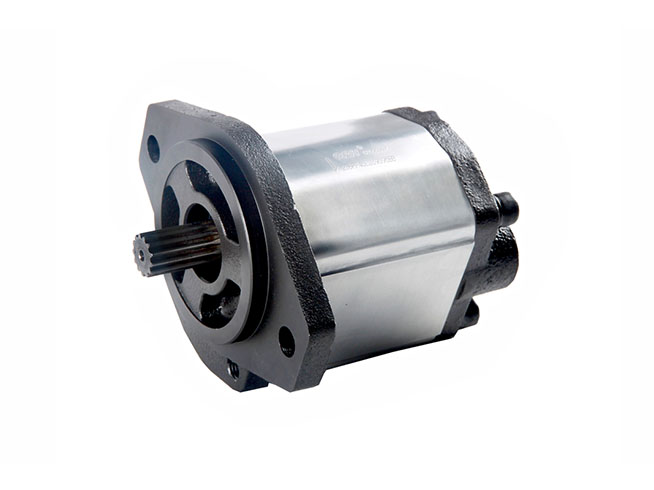

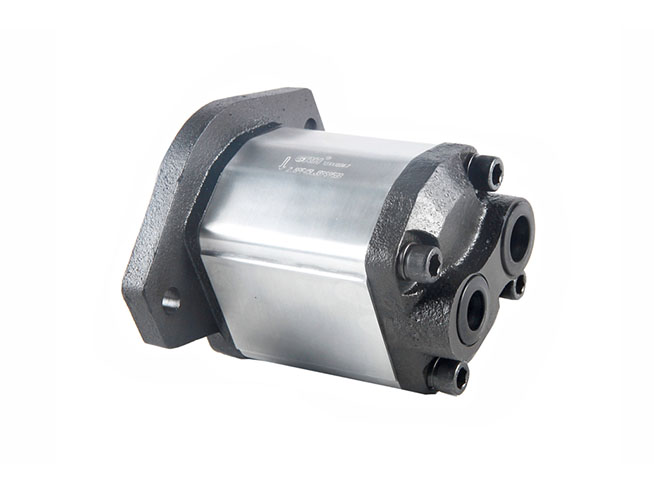

2.8APF Gear Pump

GRH has nine groups of gear pump series with a displacement range of 0.16-199cc/r, which can meet the needs of most popular applications.

Displacement range: 22-89cc/r, single to multiple

Axial clearance automatic compensation function

Precision machining

Reliable quality and stable performance

Online Inquiry Message Inquiry

Specification

Model	Displacement (ml/r)	Pressure(bar)		Speed(r/min)			L (mm)
Model	Displacement (ml/r)	Rated	Max	Rated	Max	Min	L (mm)
2.8PF06LJ39S95BB*	6	250	280	2000	4000	800	115
2.8PF08LJ39S95BB*	8	250	280	2000	4000	800	117
2.8PF10LJ39S95BB*	10	250	280	2000	4000	700	119
2.8PF12LJ39S95BB*	12	250	280	2000	3500	700	121.5
2.8PF14LJ39S95BB*	14	250	280	2000	3500	600	123.5
2.8PF16LJ39S95BB*	16	250	280	2000	3500	600	125.5
2.8PF19LJ39S95BB*	19	250	280	2000	3000	500	128.5
2.8PF22LJ39S95BB*	22	250	280	2000	3000	500	132
2.8PF25LJ39S95BB*	25	250	280	2000	3000	500	135
2.8PF28LJ39S95BB*	28	250	280	2000	3000	500	138.5
2.8PF30LJ39S95BB*	30	230	250	2000	3000	500	140.5
2.8PF32LJ39S95BB*	32	230	250	2000	3000	400	142.5
2.8PF36LJ39S95BB*	36	200	230	1500	2750	400	147
2.8PF40LJ39S95BB*	40	200	230	1500	2750	400	151.5
2.8PF43LJ39S95BB*	43	170	190	1500	2500	400	154.5
2.8PF45LJ39S95BB*	45	170	190	1500	2500	400	156.5

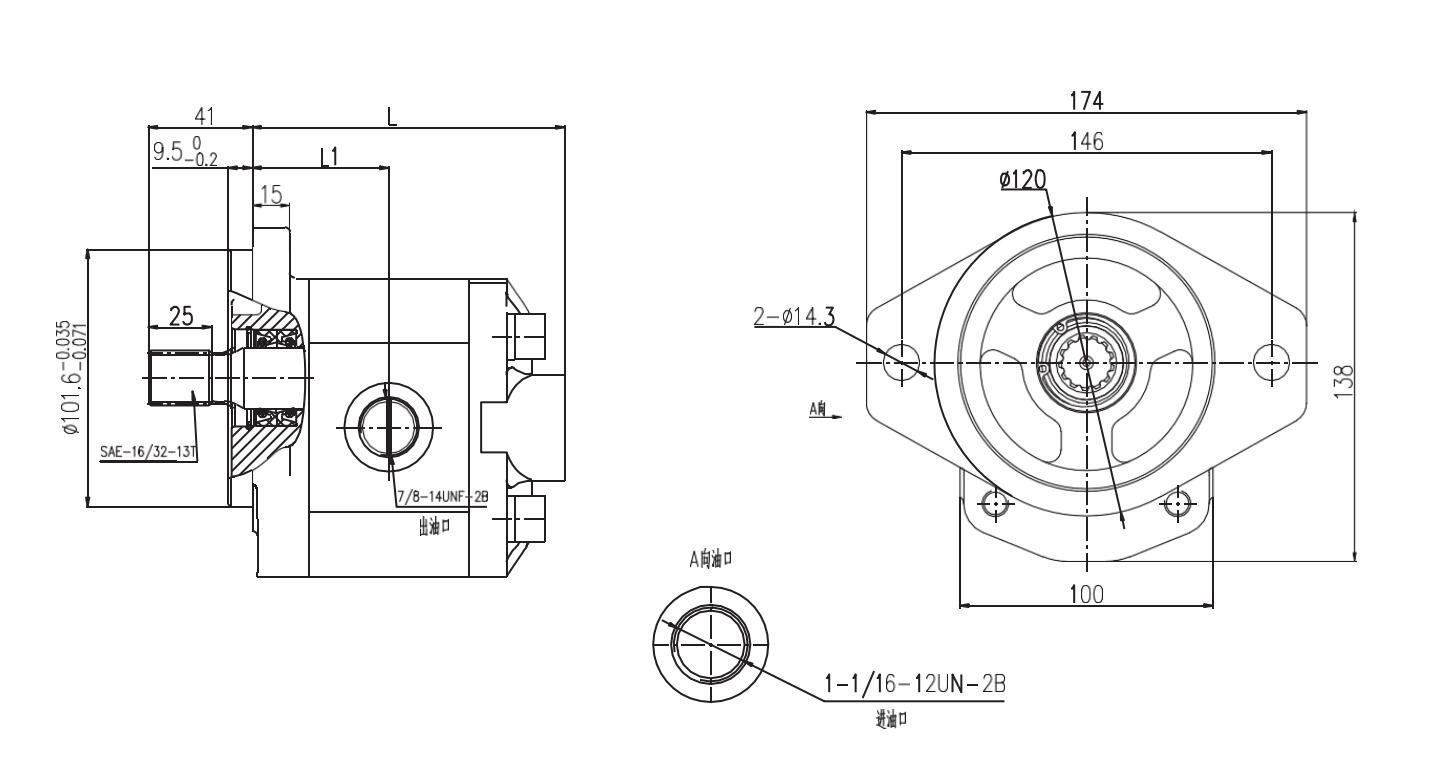

Dimensions

2.8PF is a kind of gear pump independently developed by GRH, which combines the characteristics of the 2.5PF series and the 3PF series, ?taking into account the displacement and pressure of the two series. It can be widely used in working conditions with medium displacement requirements.
