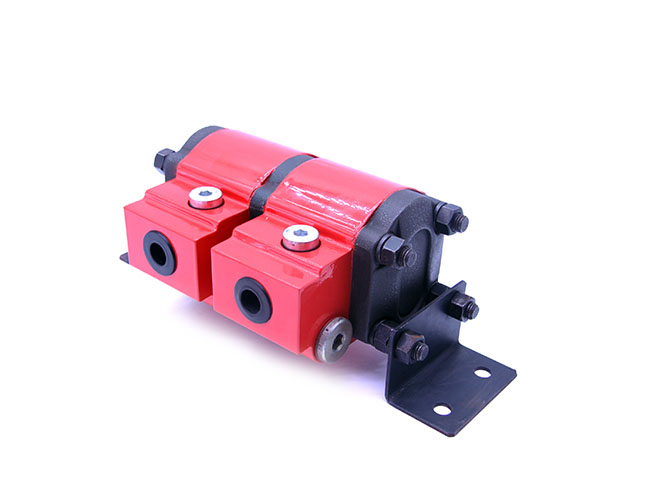

2FDF Flow Divider

PDF Download

GRH has three series of flow dividers, 1FDF, 2FDF and 3FDF series, with a displacement range of 1.6~70ml/r. Two or more gear motors can be connected by a coupling to form a flow divider, which can ensure the synchronous operation of the actuators , and obtain higher synchronization accuracy. It can be integrated with relief valve, one-way valve, speed control valve, to protect the system, oil replenishment and other functions. GRH flow divider accuracy can reach ±1.5%-±2%.

? Displacement 6~31ml/r, pressure loss 11~14bar

? Ensure synchronous operation of actuators

? High synchronization accuracy

Online Inquiry Message Inquiry

Specification
Dimensions
Applications
Application
Product
Message

Specification

Displacement (ml/r)		SAE Port			Minimum Flow(sec)		Maximum Flow (sec)		Cont. Diff Between Pressure Inlet(outlet)		Maximum Outlet Pressure Each Section
in3	cm3	Inlet	Outlet	Drain	GPM	LPM	GPM	LPM	PSI	BAR	PSI	BAR
0.366	6	G3/8	G1/2	G3/8	0.8-4.2	3.0-16	4.8	18	3142	220	3571	250
0.488	8	G3/8	G1/2	G3/8	1.1-5.0	4.0-19	5.8	22	3142	220	3571	250
0.671	11	G3/8	G1/2	G3/8	1.5-6.6	5.5-25	7.1	27	3142	220	3571	250
0.854	14	G3/8	G1/2	G3/8	1.8-8.4	7.0-32	9.0	34	2857	200	3142	220
1.037	17	G3/8	G1/2	G3/8	2.2-9.0	8.5-34	9.8	37	2857	200	3142	220
1.525	25	G3/8	G1/2	G3/8	3.1-12.7	12-48	14.0	53	2857	200	3142	220
1.891	31	G3/8	G1/2	G3/8	3.7-15.9	14-60	18.5	70	2286	160	2571	180

Dimensions

Applications

GRH 2FDF series flow divider is widely used in storage equipment, agricultural machinery, construction machinery, industrial equipment, and tunnel boring machine etc. Because it can integrate a relief valve, it is easy to adjust the system pressure.
