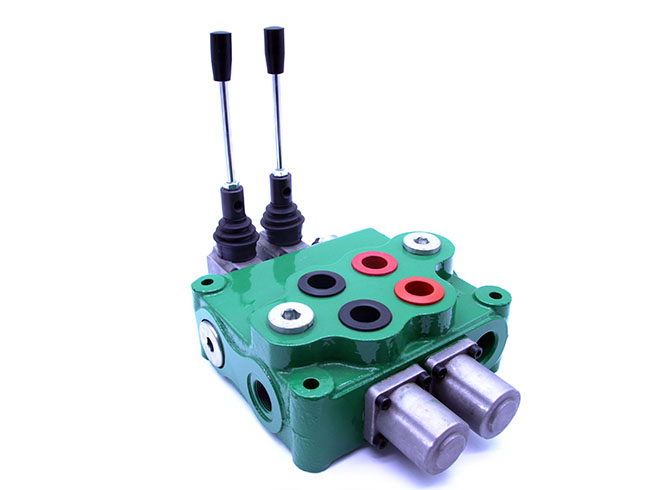

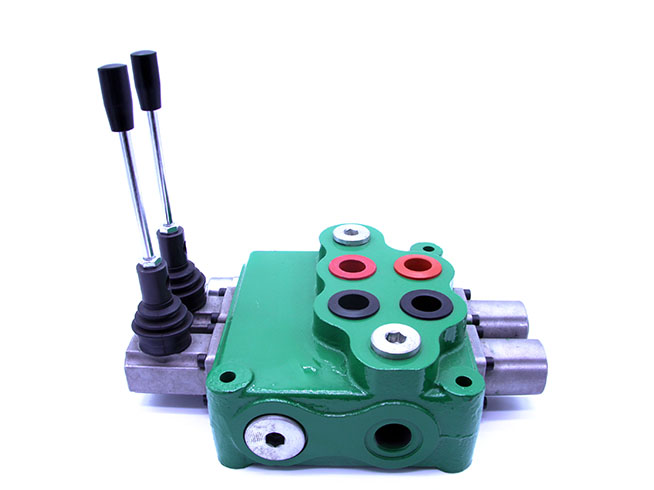

GDV160 Series

GRH has GDV series monoblock valve with a flow range of 25-170L/min. It provides various spool functions for controlling the spools of double-acting cylinders, single-acting cylinders, and hydraulic motors.
? Rated flow 160L/min, 1 ~ 6 section control
? Integrated molding, less leakage
? Precision machining for an accurate control
? A variety of control methods, a wide range of applications

Specification

Rated flow rate	160L/min	With NBR(BUNA–N)seals	-20C°?– 80C°
Maximum flow rate	170L/m1n	With FPM(VITON)seals	-20C°?– 100C°
Maximum pressure at P port	310bar	Spool stroke（1、2 positions)	+7/-7mm
Maximum pressure at A、B port	310bar	With floating function（1、2、F position）	+7/-7 -9mm
Maximum pressure at T port	25bar	Recommend hydraulic oil viscosity range	15- 75mm^2/s
Internal leakage(@70bar)	40- 55cc/min	Recommend temperature range	-40C°?– 60C°

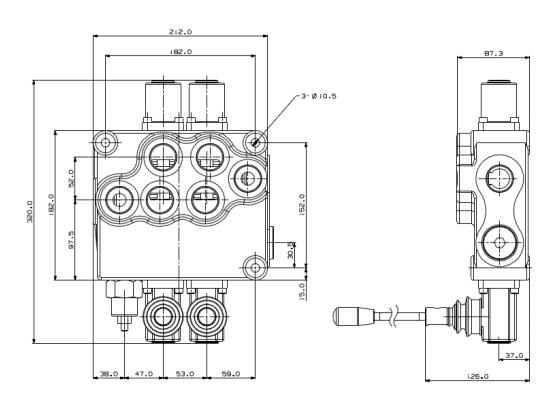

Dimensions

GRH GDV160 Series, is widely used on industrial equipment, agricultural equipment and construction machinery.

Application

GRH,design and manufacture high-quality hydraulic components and system solutions.
