Product

OM702

PDF Download

  • GRH has nine groups of gear pump series with a displacement range of 0.16-199cc/r, which can meet the needs of most popular working conditions.
  • ? Displacement 10cc/r, single
  • ? Axial clearance automatic compensation function
  • ?Precision machining
  • ? Reliable quality and stable performance

Specification

Model Displacement

(ml/r)

 Pressure(bar) Speed(r/min) Input Output
Rated Max Rated Max Min
OM702GR10K04S84D14 10 100 160 1500 2500 600 Φ14 Φ8

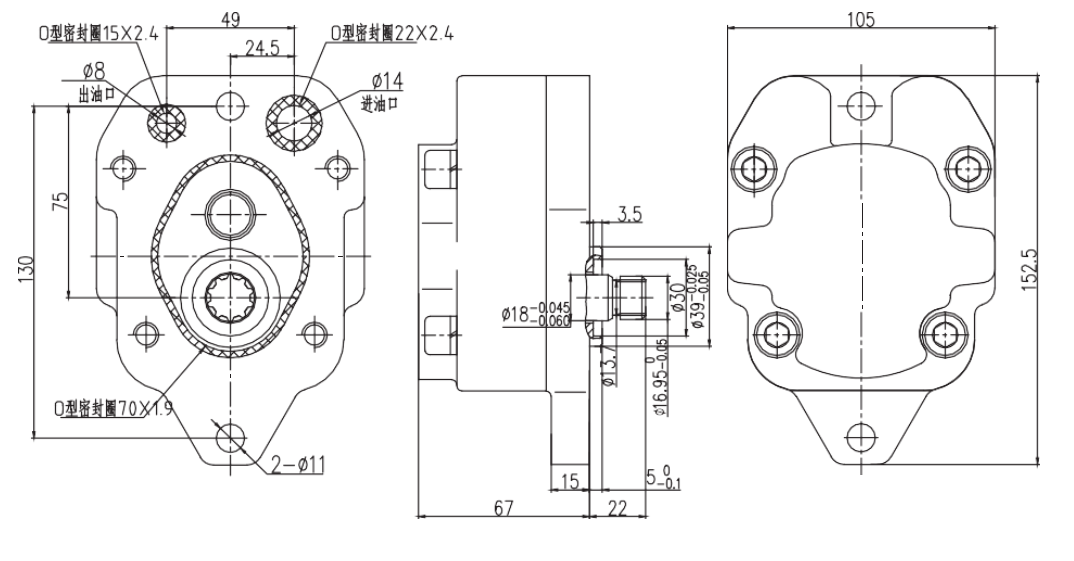

Dimensions

OM series pumps are special series of GRH, mainly gear pumps for pilot and lubrication of excavators. At present, nearly 10 models have been developed. After nearly 10 years of market verification, this series of products has been proven to be reliable and excellent in performance.

Application
