PTO Gear Pump

PDF Download

GRH PTO pumps are specially designed for PTO drive operation on tractors. No gear box is required. The PTO Pump is installed by sliding the internally splined pump onto the PTO splined shaft.

  • Self-adjusting wear plates on both sides of the gears.
  • Center section available in high strength aluminum alloy with cast iron covers for standard duty
  • Roller Bearings design.
  • Internally splined drive shaft structure.
  • High tensile cast iron end plates.
  • For tractor PTO shaft (no gear box required).
  • Two bolt installation on tractors.

Specification

Model Displacement

(ml/r)

 Pressure

(bar)

 Speed

(Rpm)

 L1 L2 L３ L4 L5
Peak Rated (mm) (mm) (mm) (mm) (mm)
CB-P160LJ53S33BB 160 160 bar (2250 psi) 1000 60.2 53 86 161 61
CB-P125LJ53S33BB 125 50.8 50.8 81 151 52
CB-P90LJ53S33BB 90 41.5 44 76 142 47.5
CB-P56LJ53S33BB 56 32 39 71 133 42.5
CB-P160LJ42H21SS 160 540 60.2 53 86 161 61
CB-P125LJ42H21SS 125 50.8 48 81 151 52
CB-P90LJ42H21SS 90 41.5 44 76 142 47.5
CB-P56LJ42H21SS 56 32 39 71 133 42.5

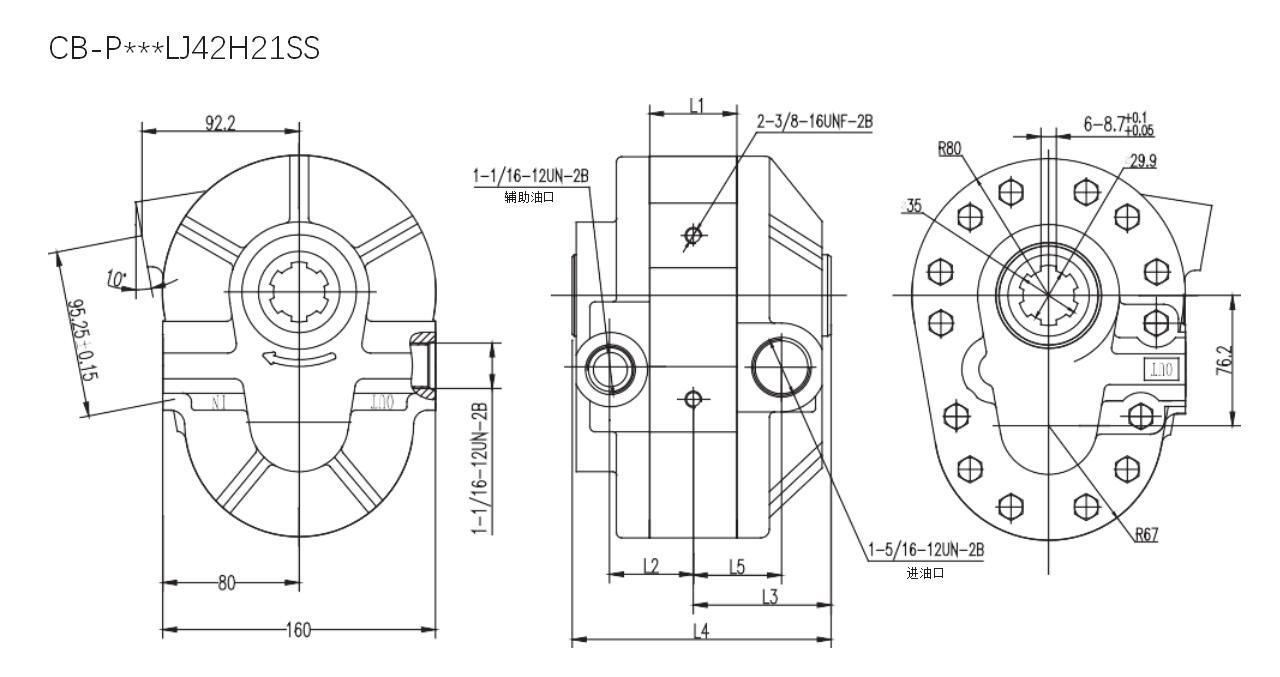

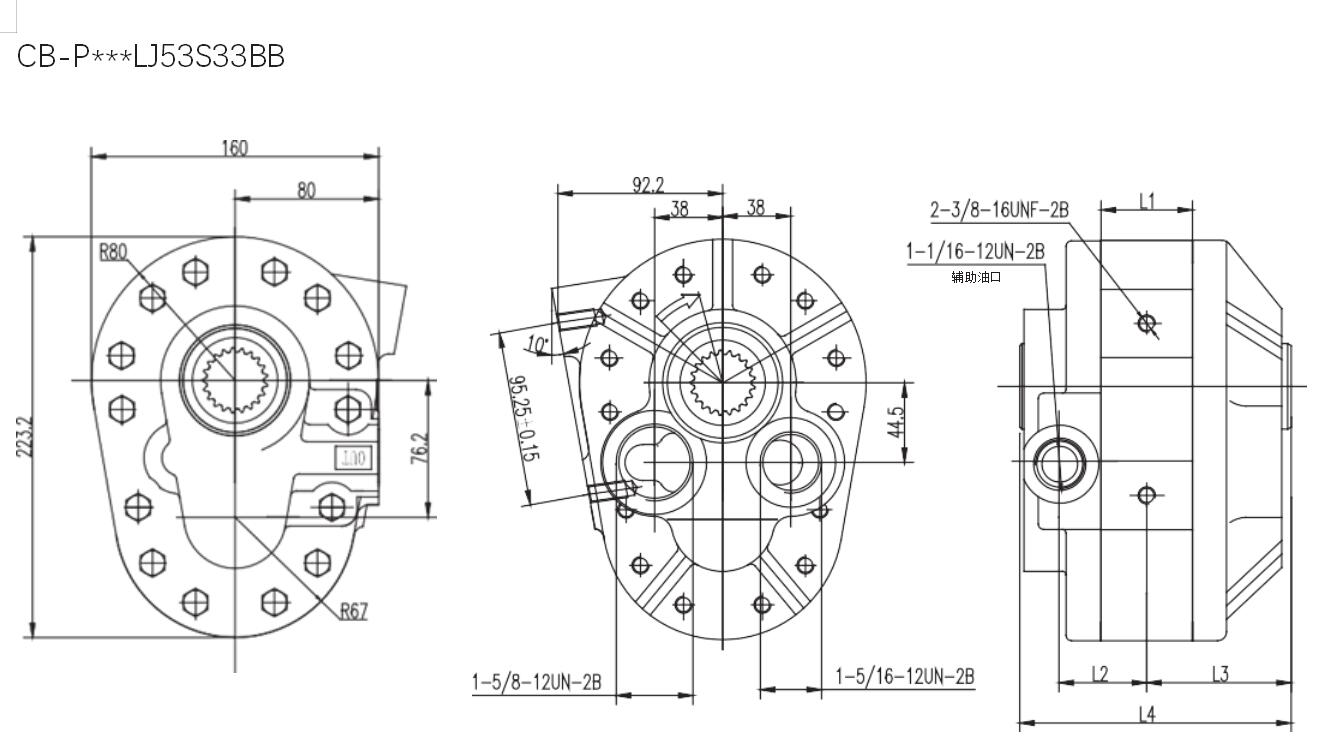

Dimensions

GRH PTO gear pump is installed on the tractor of all sizes.

Application
