Product

For Snow Removal Truck

PDF Download

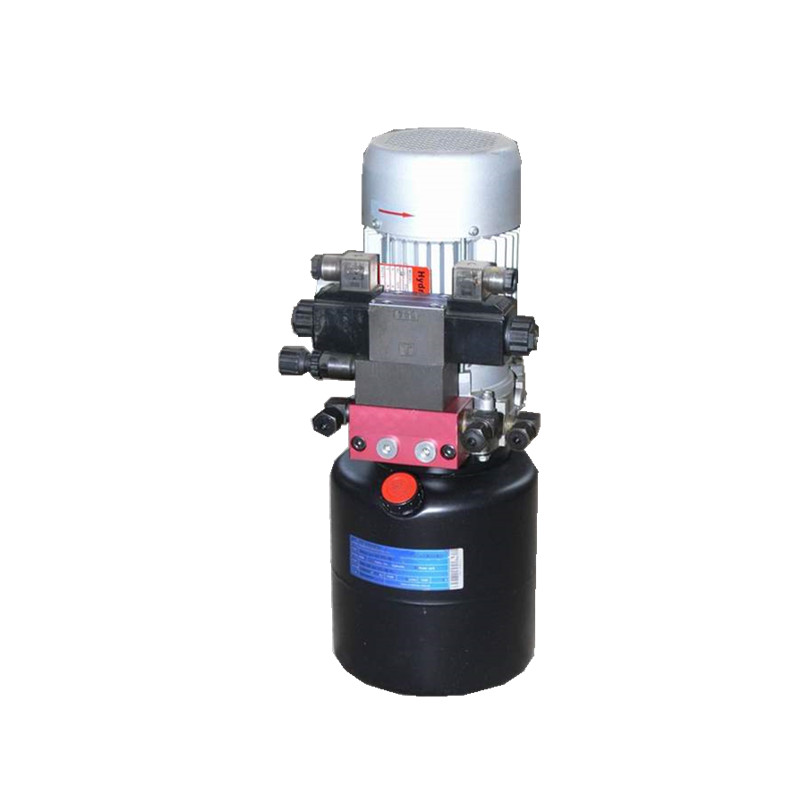

GRH has a few hundred kinds of power units for different applications, which are compactly integrated with high-pressure gear pumps, DC motors, hydraulic valves, fuel tanks and other components, which can be driven by controlling the start, stop, rotation, and reversal of the hydraulic valve. End mechanism movement. This product provides lifting and angle adjustment functions for snowplows, snow removal machine and can control one double-acting cylinder and two single-acting cylinders at the same time.

? Customization design

? Compatible with complex hydraulic system

? Compact structure, low noise, high efficiency and energy saving

? Self-made quality core components, stable and reliable

Specification

Model Motor Disp. Tank CAP. Pressure Installation Port Size
(cc/r) (L) (MPa)
DC-F36-1.6/F-1.6/12/**-5H-C 12V 1.6KW 2500RPM 1.6 5 20 Horizontal G1/4

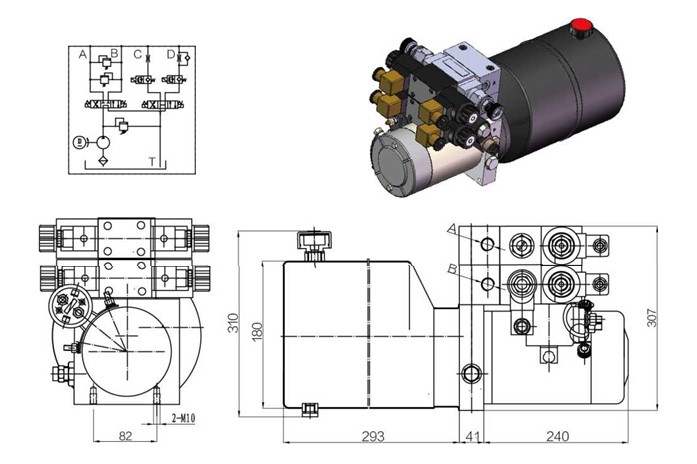

Dimensions

Guorui Hydraulic double-acting power unit can be adjusted according to customers’ requirements. This product is widely used in wingspan vehicles, tire changers, snowplows, etc.

Application
