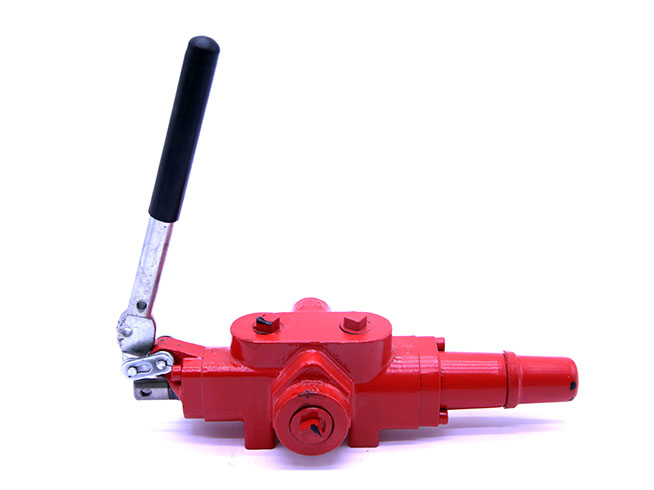

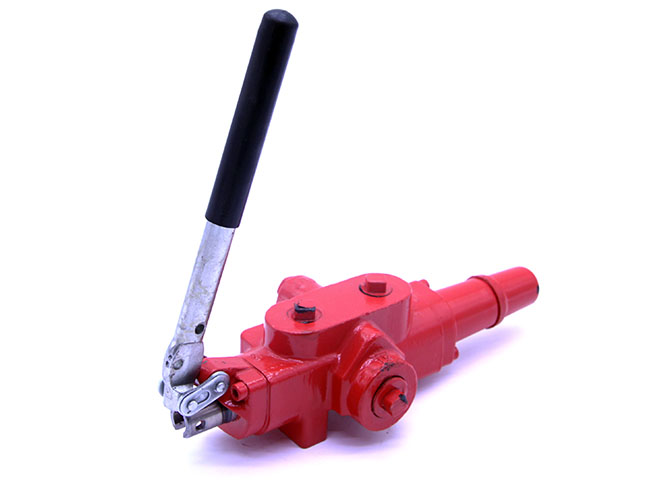

the log splitter valve is a special control valve for the log splitter.
Specification
| Flow | 95L/min |
| Relief Pressure | 200bar |
| Detent Release Pressure | 70 – 140bar |
| Pressure Drop (P to A or B) | 3bar(at 75L/min) |
| Pressure Drop ( P to T) | 0.8bar(at 75L/min) |

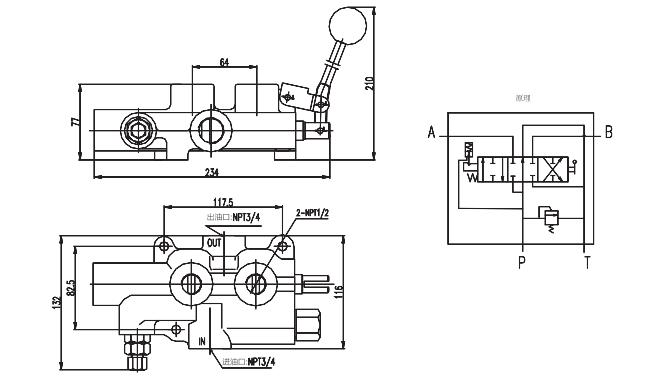

Dimensions
c
GRH,design and manufacture high-quality hydraulic components and system solutions.
