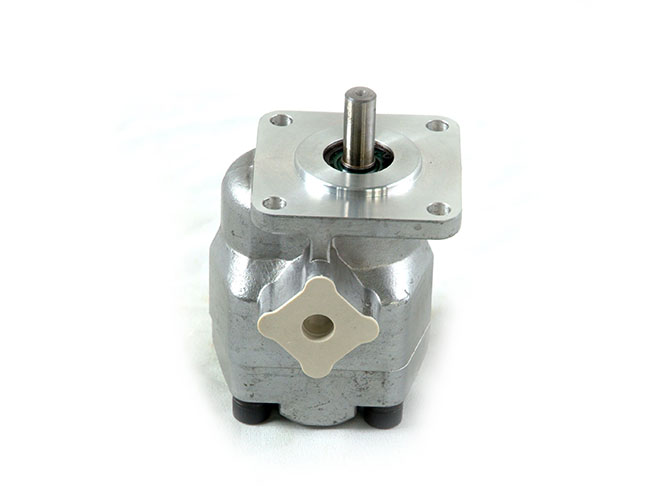

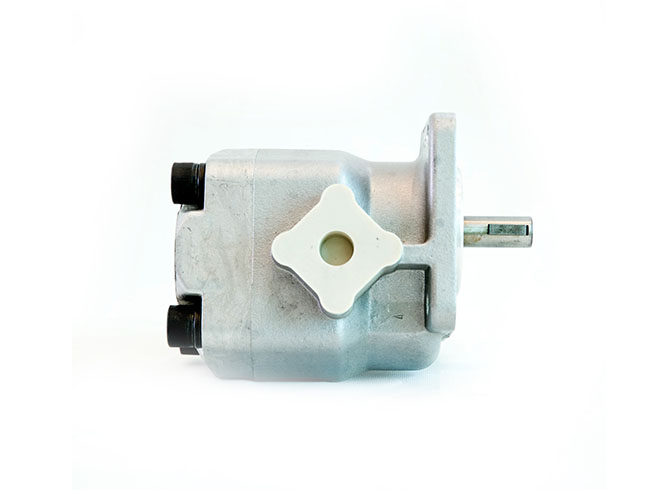

Group 1.5 gear pump ranges from 2cc to 12cc/r.
The displacement of this group is between Group 1 and Group 2, it’s easier for the end user to select the right gear pump for their applications for economic and efficient operation.
Group 1.5 is designed for high efficiency and longer endurance in different tough applications. The gear pump includes special designed bushing and seal , which is used to optimize performance even in the high temperature and low viscosity applications.
Specification
|
Model |
Displacement
(ml/r) |
Pressure(bar) | Speed(r/min) | |||
| Rated | Peak | Rated | Max | Min | ||
| 1.5PF02F50P04* | 2 | 210 | 250 | 3000 | 3500 | 500 |
| 1.5PF03F50P04* | 3 | 210 | 250 | 3000 | 3500 | 500 |
| 1.5PF04F50P04* | 4 | 210 | 250 | 3000 | 3500 | 500 |
| 1.5PF05F50P04* | 5 | 210 | 250 | 3000 | 3500 | 500 |
| 1.5PF06F50P04* | 6 | 210 | 250 | 3000 | 3500 | 500 |
| 1.5PF08F50P04* | 8 | 210 | 250 | 3000 | 3500 | 500 |
| 1.5PF09F50P04* | 9 | 175 | 210 | 1500 | 2000 | 500 |
| 1.5PF11F50P04* | 11 | 175 | 210 | 1500 | 2000 | 500 |
| 1.5PF12F50P04* | 12 | 175 | 210 | 1500 | 2000 |
500 |
Dimensions
GRH has two pumps of Group 1.5 PF available, for both plastic injection machine and rice transplanter.
