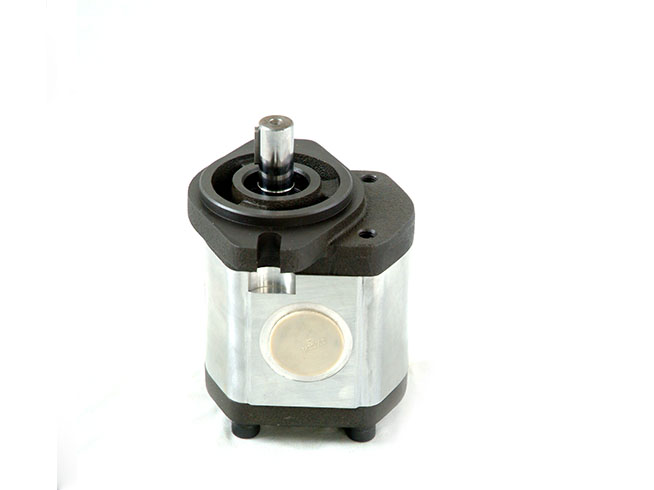

GRH has 5 series gear motors: 1, 2, 2.5, 3, 3, 5, and the displacement range is 1.1-115ml/r. It has strong anti-contamination ability, simple structure and high reliability; it has the advantages of automatic compensation of axial clearance, wear resistance of the shaft sleeve, and long service life.
Displacement range 10-40ml/r
Higher carrying capacity and longer service life
With automatic compensation of axial clearance
Specification
Displacement(ml/r) | 10 | 16 | 20 | 25 | 27 | 30 | 32 | 36 | 40 |
L1 | 44 | 45 | 60 | 62 | 63 | 65 | 66 | 68 | 70 |
L | 96 | 98 | 125 | 130 | 132 | 137 | 139 | 144 | 148 |

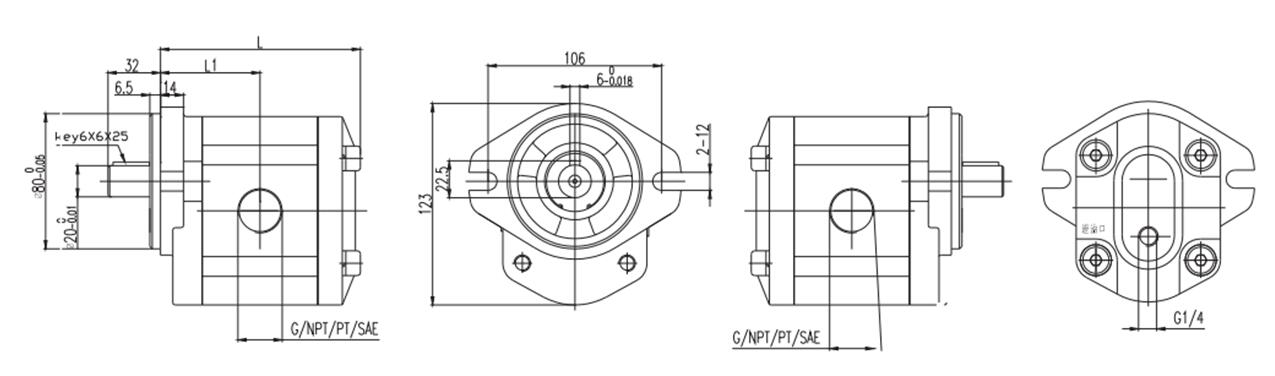

Dimensions
Application
GRH,design and manufacture high-quality hydraulic components and system solutions.
