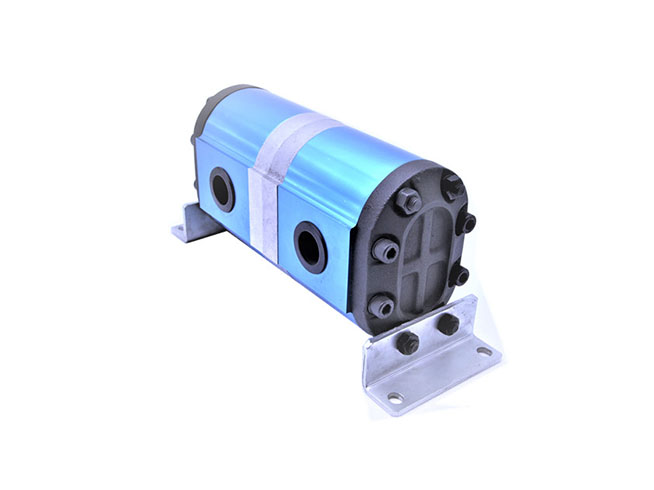

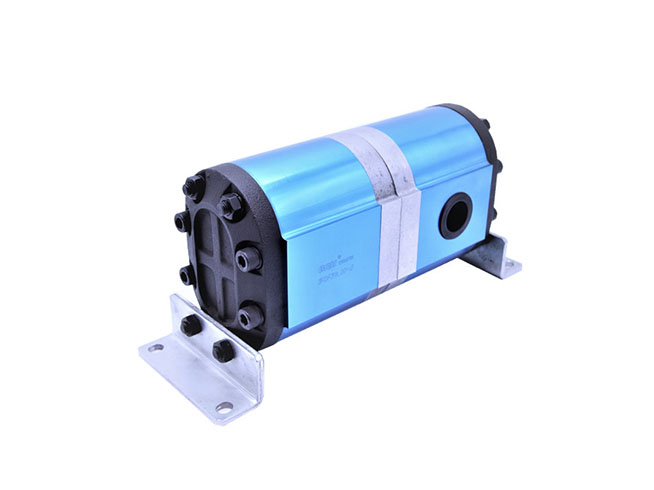

GRH has three series of flow divider, 1FDF, 2FDF and 3FDF series, with a displacement range of 1.6~70ml/r. Two or more gear motors can be connected by a coupling to form a gear type flow divider, which can ensure the synchronous operation of the actuators , and obtain higher synchronization accuracy. It can be integrated with relief valve, one-way valve, speed control valve, to protect the system, oil replenishment and other functions. GRH flow divider accuracy can reach ±1.5%-±2%.
? Displacement 20~70ml/r
? Ensure synchronous operation of actuators
? High synchronization accuracy
? Reliable quality and stable performance
Specification
| Displacement
(ml/r) |
L1(mm) | L2(mm) | L3(mm) | L4(mm) |
| 20 | 307.1 | 333.1 | 122.5 | 92.3 |
| 30 | 322 | 348 | 130.0 | 96.0 |
| 40 | 336 | 362 | 137.0 | 99.5 |
| 50 | 349.1 | 375.1 | 143.5 | 102.8 |
| 60 | 365.1 | 391.1 | 151.5 | 106.8 |
| 70 | 379.1 | 405.1 | 158.5 | 110.3 |

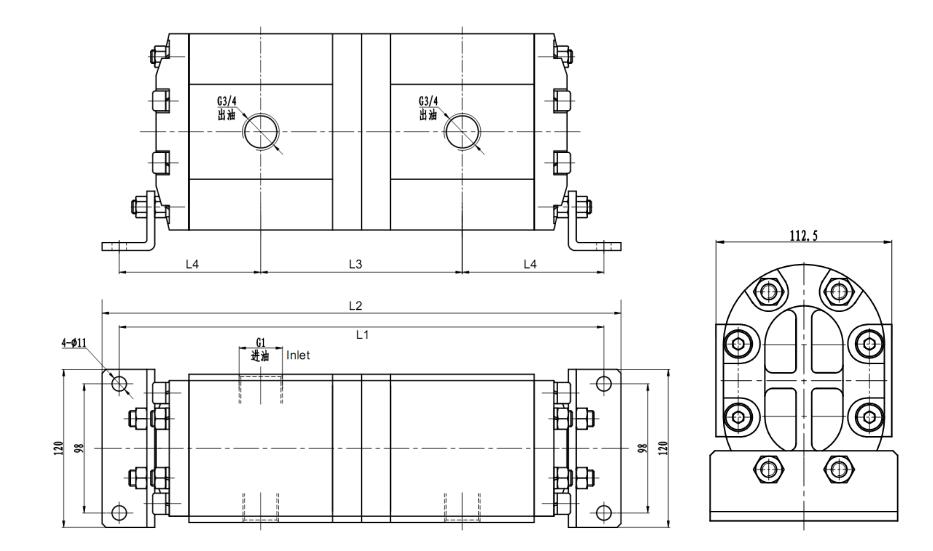

Dimensions
Applications
GRH 3FDF flow divider is widely used in construction machinery, industrial equipment, etc.
