Product

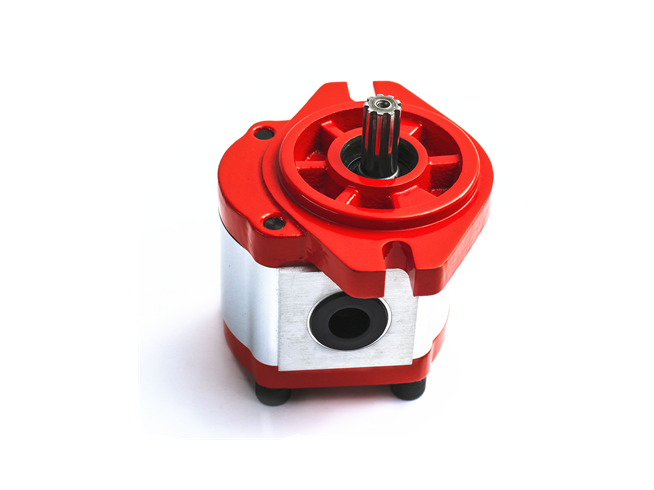

2APF Gear Pump

PDF Download

GRH Multiple hydraulic pumps in aluminum and with external gears, already assembled, belonging to size Group 2. Some parts are available with cast iron flanges. You can choose between standard, at separate-stages, single inlet, and shaped pumps according to the catalog. We appreciate your enquiry through emails.

The performances of Group 2 available are: displacement 4.2cc – 39 cc, maximum pressures up to 300 bar.

Reliable and stable; even at the low speed.

Specification

Model

Displacement

(ml/r)

Pressure(bar)

Speed(r/min)

L

L1

Input

Output

Rated Peak Rated Max Min (mm)

(mm)

2ABPF04LJ52SB03*

4 200 250 2000 3500 500 96 43.3 1-1/16-12UN-2B 3/4-16UNF-2B
2ABPF06LJ52SB03* 6 200 250 2000 3500 500 98 45
2ABPF08LJ52SB03* 8 200 250 2000 3500 500 102 46.5
2ABPF10LJ52SB03* 10 200 250 2000 3500 500 104 48
2ABPF12LJ52SB03* 12 200 250 2000 3500 500 108 50
2ABPF14LJ52SB03* 14 200 250 2000 3500 500 110 51
2ABPF16LJ52SB03* 16 200 250 2000 3500 500 114 53
2ABPF18LJ52SB03* 18 200 250 2000 3500 500 117 55
2ABPF20LJ52SB03* 20 200 250 2000 3500 500 120 56
2ABPF23LJ52SB03* 23 200 250 2000 3000 500 123 58
2ABPF25LJ52SB03* 25 200 250 2000 3000 500 128 60
2ABPF28LJ52SB03* 28 160 200 2000 3000 500 133 63
2ABPF30LJ52SB03* 30 160 200 2000 3000 500 136 64

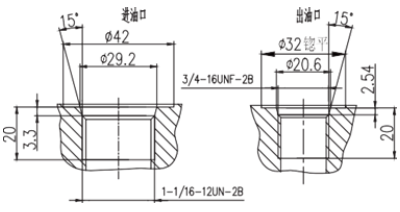

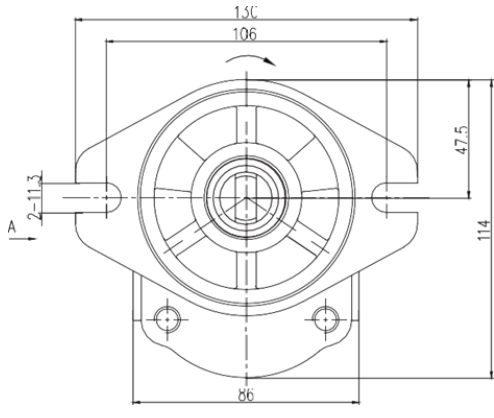

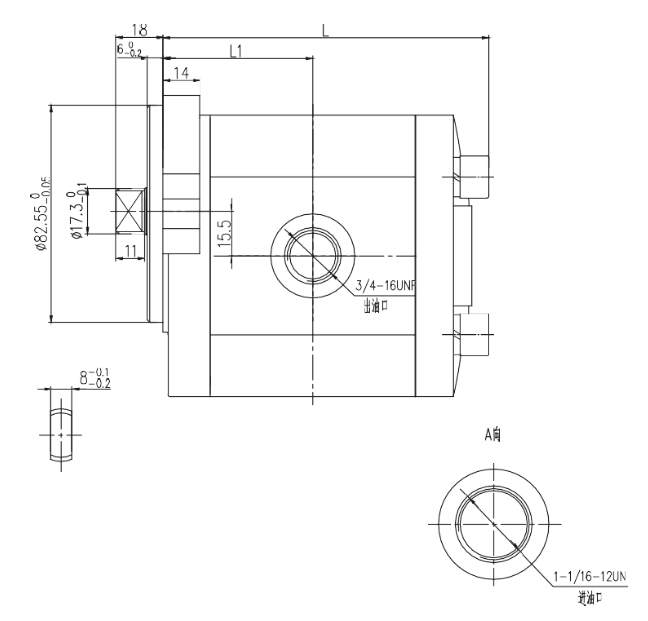

Dimensions

They?are?one?of?the?most?common?types?of?pumps?for?hydraulic?fluid?power?applications.?Gear?pumps?are?also?widely?used?in?hydraulic?installations?to?pump?hydraulic?fluids, such as small vehicles, scissor lit and boom lift, lawn mowers, and electric forklifts, etc. we have gear pump with an integral valves as option for pressure balance design. The cast iron flange gear pump can also be used for the priority pump mounted on the piston pump.

Application
