Product

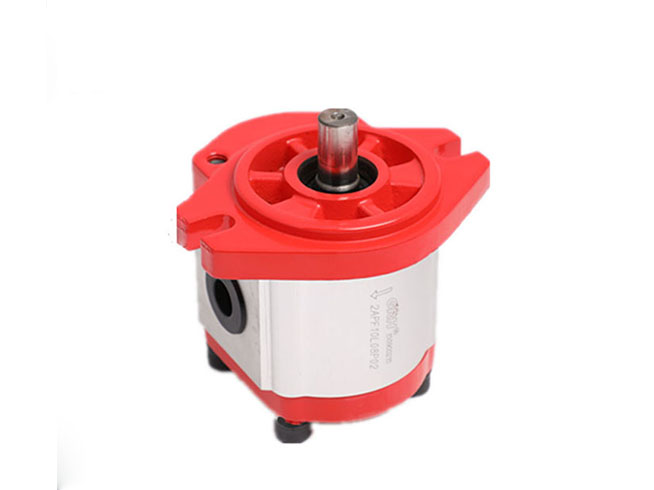

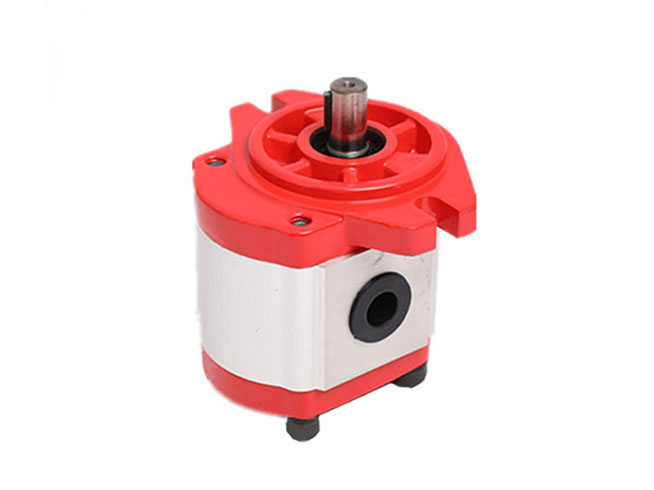

2MF Gear Motor

PDF Download

GRH has series gear motor , 1, 2, 2.5, 3, 3, 5, and the displacement range is 1.1-115ml/r. It has strong anti-contamination performance, simple structure and high reliability; it has the advantages of automatic compensation of axial clearance, wear resistance of the shaft sleeve, and long service life.

Displacement range 4-30ml/r

Higher carrying capacity and longer service life

With automatic compensation of axial clearance

Specification

Displacement(ml/r) 4 6 8 10 12 14 16 18 20 23 25
L1 39 40 41 43 44 46 48 49 51 54 57
L 111 112 115 118 120 125 128 132 137 139 141

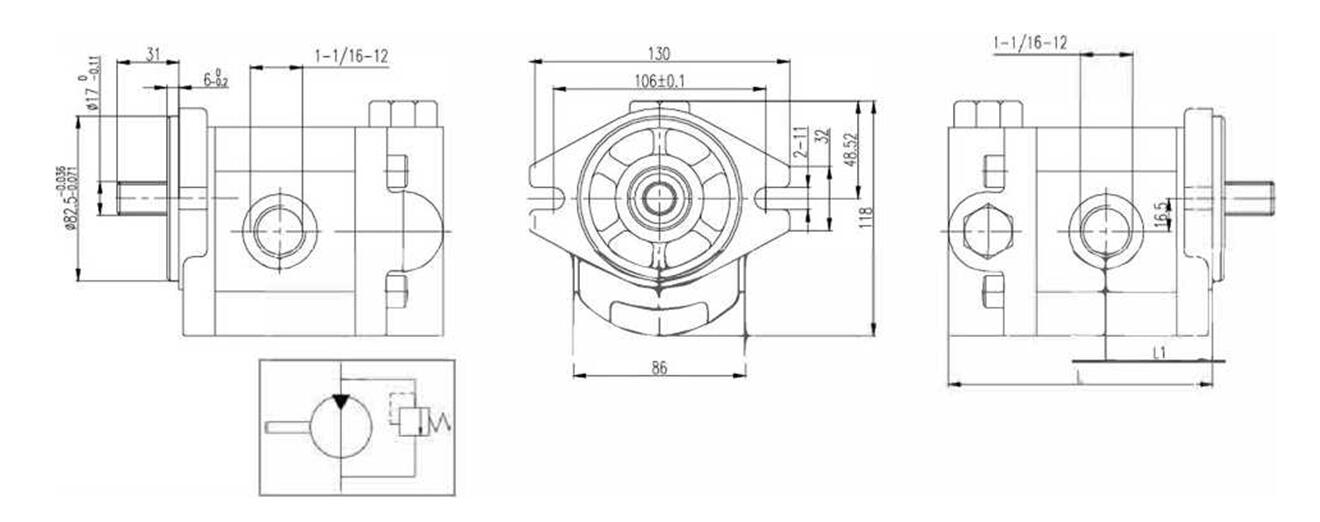

Dimensions

2MF series gear motor uses hydraulic oil to drive gears and outputs power from the shaft end, which is mostly used for fan cooling. At the same time, it can be used as a vibration motor for small rollers and forklift attachment.

Application

Related Products

GRH,design and manufacture high-quality hydraulic components and system solutions.
