GRH has GP, GR, GH, GS, GT, GV, GGM series high speed orbital motors, with a high-speed and low-torque .
? Provides higher performance and higher density power
? Speed up to 6000rpm, long service life
? Constant temperature and dust-free workshop, high precision parts processing
Radial force: the maximum allowable radial load, to ensure the bearing life of B10 (1000 hours, 2500RPM).
Temperature: The highest recommended oil temperature is 82°C.
Viscosity: The recommended viscosity is 32m㎡/s. The minimum recommended viscosity is 13.
Filtration: The minimum recommended filtration is 10μm.
Axial force: 350N max.
Specification
| Model No. | GGM3.6 | GGM6.1 | GGM7.4 | GGM9.5 | GGM11.5 | |
| Displacement cm3/rev
Per Revolution |
3.57 | 6.094 | 7.374 | 9.5 | 11.471 | |
| Maximum Rated RPM | 5000 | 5000 | 5000 | 5000 | 5000 | |
| Rated Flow Per（1000 bar） L | 3.6 | 6.1 | 7.4 | 9.5 | 11.5 | |
| Maximum Rated Pressure bar | Cont. | 138 | 138 | 138 | 138 | 138 |
| Int. | 172.5 | 172.5 | 172.5 | 172.5 | 172.5 | |
| Output Torque Nm /69bar* | 4 | 7 | 8 | 10 | 12 | |
| Weight kg | 1.25 | 1.36 | 1.41 | 1.5 | 1.59 | |
| Shaft Side Load **? N | ?755 | 578 | 490 | 310 | 132 | |
*THE ORETICAL
** SIDE LOAD: Maximum Permissible Shaft Side Load at 2500RPM and OIL TEMPERATURE:Maximum recommend oil temperature 1000 PSI(69.0 bar)(B-10 Bearing Life of 1000 Hrs.)

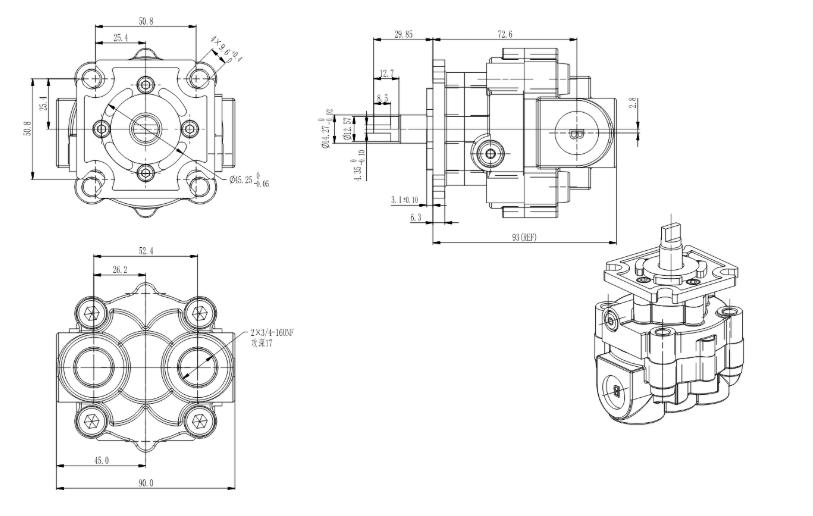

Dimensions
GRH GGM series high speed orbital motor is widely used in the cooling system of agricultural machinery and construction machinery due to its nearly 6000rpm speed.
GRH,design and manufacture high-quality hydraulic components and system solutions.
