Product

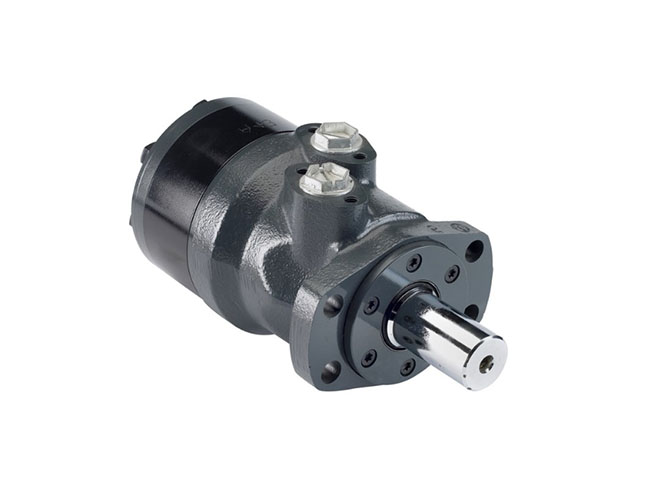

GH Series Orbital Motor

PDF Download

  • GRH has the GP, GR, GH, GS, GT, GV, GGM series orbital motors. GH series orbital motor is a shaft distribution motor that can be installed and used in a small space.
  • ? Using integral rotor and stator set, high power density
  • ? Higher efficiency, higher speed, longer service life
  • ? The shaft seal bears high pressure and can be used in series or parallel
  • ? Constant temperature and dust-free workshop, high precision parts processing

Specification

Type GH200 GH250 GH315 GH400 GH500
Displacement cm3/rev[in3/rev] 201,3[12.3] 252[15.4] 314,9[19.2] 396,8[24.2] 502,4[30.7]
Max. Speed,

[RPM]

 Cont. 370 295 235 185 150
Int.* 445 350 285 225 180
Max. Torque

daNm[lb-in]

 Cont. 51[4510] 61[5398] 74[6548] 84[7434] 82[7257]
Int.* 58[5130] 70[6195] 82[7257] 98[8673] 104[9204]
Peak** 64[5064] 79[6992] 98[8673] 109[9647] 117[10350]
Max. Output Cont. 16[21] 16[21] 14[18.7] 12,5[16.7] 11[14.7]
kW[HP] Int.* 18,5[24.8] 18,5[24.8] 15,5[20.7] 15[20.1] 14[18.7]
Max. Pressure Drop

bar[PSI]

 Cont. 175[2540] 175[2540] 175[2540] 155[2240] 125[1810]
Int.* 200[2900] 200[2900] 200[2900] 190[2750] 160[2320]
Peak** 225[3260] 225[3260] 225[3260] 210[3045] 180[2610]
Max. Oil Flow

lpm[GPM]

 Cont. 75[19.81] 75[19.81] 75[19.81] 75[19.81] 75[19.81]
Int.* 90[23.78] 90[23.78] 90[23.78] 90[23.78] 90[23.78]
Max. Inlet Pressure

bar[PSI]

 Cont. 200[2900] 200[2900] 200[2900] 200[2900] 200[2900]
Int.* 225[3260] 225[3260] 225[3260] 225[3260] 225[3260]
Peak** 250[3626] 250[3626] 250[3626] 250[3626] 250[3626]
Max. Starting Pressure with Unloaded Shaft

[bar PSI]

 5[72] 5[72] 5[72] 5[72] 5[72]
Min. Starting Torque

daNm[lb-in]

 At max. press. drop Cont. 39[3450] 52[4600] 66[5840] 72[6370] 72[6370]
At max. press. drop Int.* 45[3980] 59[5221] 73[6460] 88[7788] 88[7788]
Min. Speed***

[RPM]

 10 10 8 5 5
Weight [kg lb] For rear ports+0,650[1.433] 10,5[23.2] 11[24.3] 11,5[25.4] 12,3[27.1] 13[28.7]

Dimensions

GRH GH series orbital motors are widely used in conveyors, textile machinery, mining machinery, industrial processing, cooling equipment, engineering machinery, forest machinery and agricultural machinery.
