GRH has nine groups of gear pump series with a displacement range of 0.16-199cc/r, which can meet the needs of most tough applications.
? Displacement 17cc/r, single
? Axial clearance automatic compensation function
? machined by imported CNC
? Reliable quality and stable performance
Specification
| Model | Displacement
(ml/r) |
Pressure(bar) | Speed(r/min) | |||
| Rated | Max | Rated | Max | Min | ||
| OM701GR17K03S13-X | 17 | 140 | 160 | 1500 | 2500 | 600 |

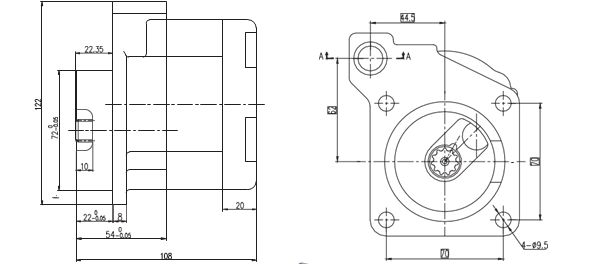

Dimensions
OM series pumps are special series of GRH, mainly gear pumps for pilot and lubrication of excavators. At present, nearly 10 models have been developed. After nearly 10 years of market verification, this series of products has been proven to be reliable and excellent in performance.
Application
_副本-2.jpg)
平臺(tái)_副本.jpg)
GRH,design and manufacture high-quality hydraulic components and system solutions.
