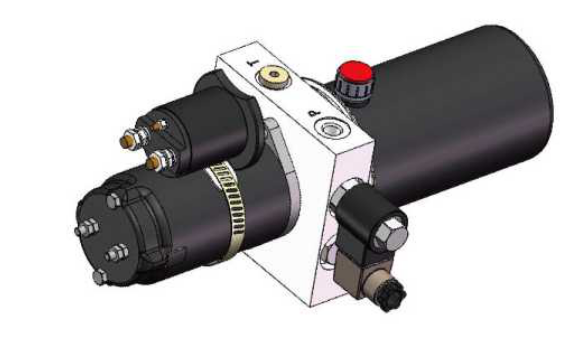

GRH has a few hundred kinds of power units for different applications, which are compactly integrated with high-pressure gear pumps, motors, hydraulic valves, reservoirs and other components. As one of the basic applications of the power unit, GRH can change the control mode and structure of the power unit of the pallet truck. From the control method, it can realize full electric button control or full manual press control. From the structural point of view, it can be in the form of a general power unit or a custom-made actuator, integrating power source, power components, control components, and executive components, and integrated design and installation.
? Customization and intensification design
? Compact structure, low noise, high efficiency and energy saving
? Self-made quality core components, stable and reliable
Specification
Model | Motor | Discp. | Tank Cap. | Pressure (MPa) | Installation | Port Size | L(mm) |
(cc/r) | (L) | ||||||
DC-F10-0.50/E-0.8/12/**-1.0H-C | 12V 0.8Kw 3450RPM 60Hz | 0.5 | 1 | 16 | Horizontal | G1/4 | 178 |
DC-F10-0.75/E-0.8/12/**-1.2H-C | 12V 0.8Kw 3450RPM 60Hz | 0.75 | 1.2 | 210 | |||
DC-F10-0.50/E-0.8/24/**-1 .OH-C | 24V 0.8Kw 3450RPM 60Hz | 0.5 | 1 | 178 | |||
DC-F10-0.50/E-0.8/24/**-1.7H-C | 24V 0.8Kw 3450RPM 60Hz | 0.75 | 1.7 | 170 |

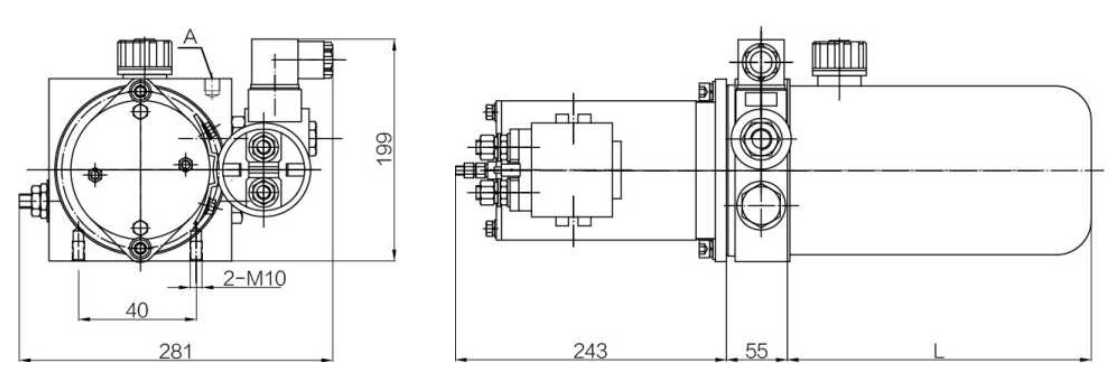

Dimensions
Guorui Hydraulic single-acting power unit can be adjusted according to customer requirements. It is widely used in the fields of car lifts, scissor lifts, docking bridges, pallet trucks, stackers, small aerial work platforms, snowplows and medical benches.
GRH can also customize hydraulic power units for you.
Application
