GRH has a few hundred kinds of of power units for different applications, which are compactly integrated with high-pressure gear pumps, AC motors, integrated valve manifolds, fuel tanks and other components. The zero-leakage two-way check valve realizes the complete isolation of the two oil circuits, so that the ascending and descending movements of the two oil circuits do not interfere with each other. It is an ideal hydraulic source for a multi-cylinder single lifting system. This series of power units are widely used in scissor lift .
?Customization design
? Compact structure, low noise, high efficiency and energy saving
? Self-made high-quality core components, stable product performance
Specification
| Model | Motor | Discp(cc/r) | Tank Cap.(L) | Pressure (MPa) | Installation | Port Size |
| AC-F29-2.1/F-2.2/220/2850/**-20V-C | 220V 2.2Kw 2850RPM 50Hz | 2.1 | 20 | 20 | ?Vertical | G1/4 |
| AC-F29-2.1/H-3.0/220/2850/**-20V-C | 220V 3.0Kw 2850RPM 50Hz | 26 | ||||
| AC-F29-2.1/G-2.2/380/2850/**-20V-C | 380V 2.2Kw 2850RPM 50Hz | 22 | ||||
| AC-F29-2.1/H-3.0/380/2850/**-20V-C | 380V 3.0Kw 2850RPM 50Hz | 28 |

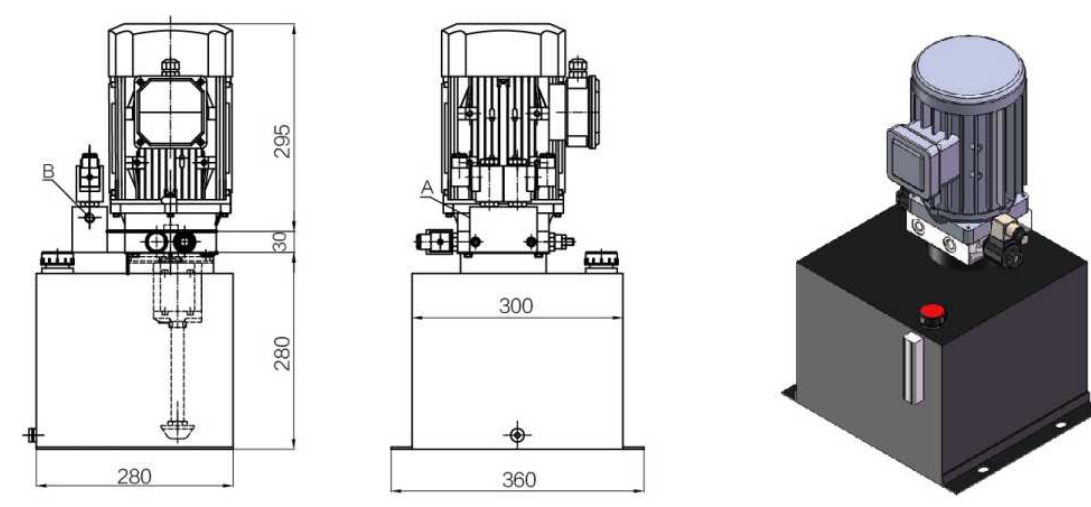

Dimensions
Guorui Hydraulic single-acting power unit can be adjusted according to customer requirements. It is widely used in the fields of car lifts, scissor lifts, docking bridges, pallet trucks, stackers, small aerial work platforms, snowplows and medical benches.
GRH can also customize hydraulic power units for you.
Application
