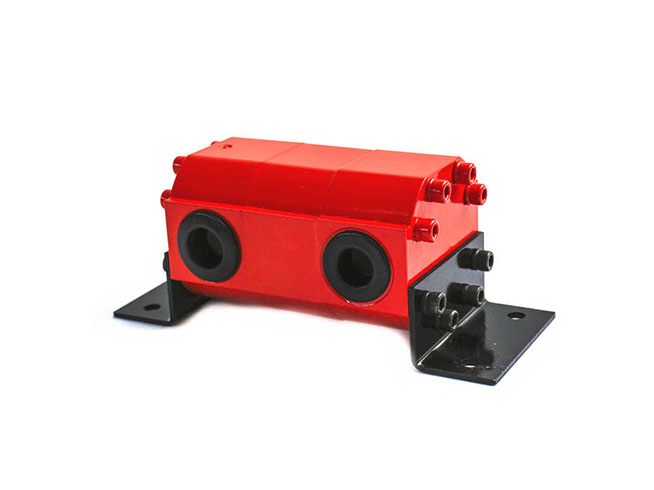

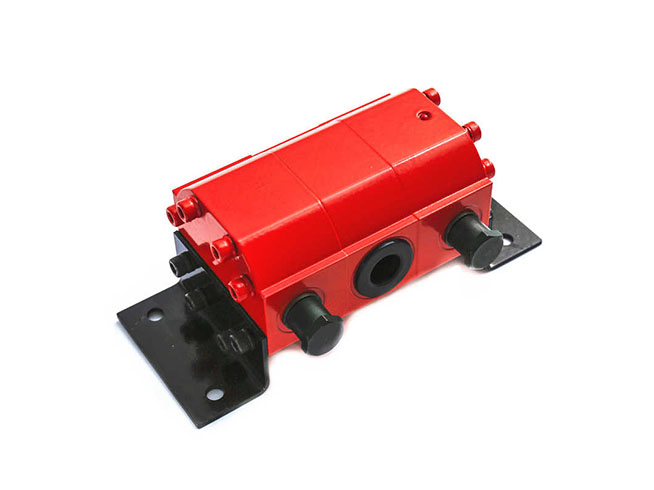

GRH has three series of gear type flow dividers, 1FDF, 2FDF and 3FDF, with a displacement of 1.6~70ml/r. Two or more gear motors can be connected by a coupling to form a flow divider, which can ensure the synchronous operation of the actuators , and obtain higher synchronization accuracy. It can be integrated with overflow valve, one-way valve, speed control valve, to protect the system, oil replenishment and other functions. GRH flow divider flow distribution accuracy can reach ±1.5%-±2%.
? Displacement 1.6~9ml/r, pressure loss 16~19bar
? Ensure synchronous operation of actuators
? High synchronization accuracy
Specification
| Displacement
(ml/r) |
SAE Port | Minimum Flow(sec) | Maximum Flow(sec) | Cont. Diff Between Pressure Inlet(outlet) | Maximum Outlet Pressure Each Section | ||||||
| in3 | cm3 | Inlet | Outlet | gpm | Ipm | gpm | Ipm | psi | bar | psi | bar |
| 0.097 | 1.60 | SAE6 | SAE6 | 0.8 | 3.0 | 1.7 | 6.40 | 1800 | 124 | 3500 | 240 |
| 0.129 | 2.13 | SAE8 | SAE8 | 1.2 | 4.5 | 2.5 | 9.50 | 1800 | 124 | 3500 | 240 |
| 0.194 | 3.18 | SAE8 | SAE6 | 1.7 | 6.4 | 4.5 | 13.2 | 1800 | 124 | 3500 | 240 |
| 0.258 | 4.24 | SAE10 | SAE10 | 2.5 | 9.5 | 5.0 | 18.9 | 1800 | 124 | 3500 | 240 |
| 0.323 | 5.29 | SAE10 | SAE10 | 3.0 | 11.4 | 6.0 | 22.7 | 1800 | 124 | 3500 | 240 |
| 0.388 | 6.36 | SAE10 | SAE10 | 3.5 | 13.2 | 7.0 | 26.5 | 1600 | 110 | 3500 | 240 |
| 0.453 | 7.42 | SAE10 | SAE10 | 4.0 | 15.1 | 8.0 | 30.3 | 1300 | 90 | 3500 | 240 |
| 0.517 | 8.42 | SAE10 | SAE10 | 4.5 | 17.0 | 9.0 | 34.1 | 1200 | 83 | 3500 | 240 |

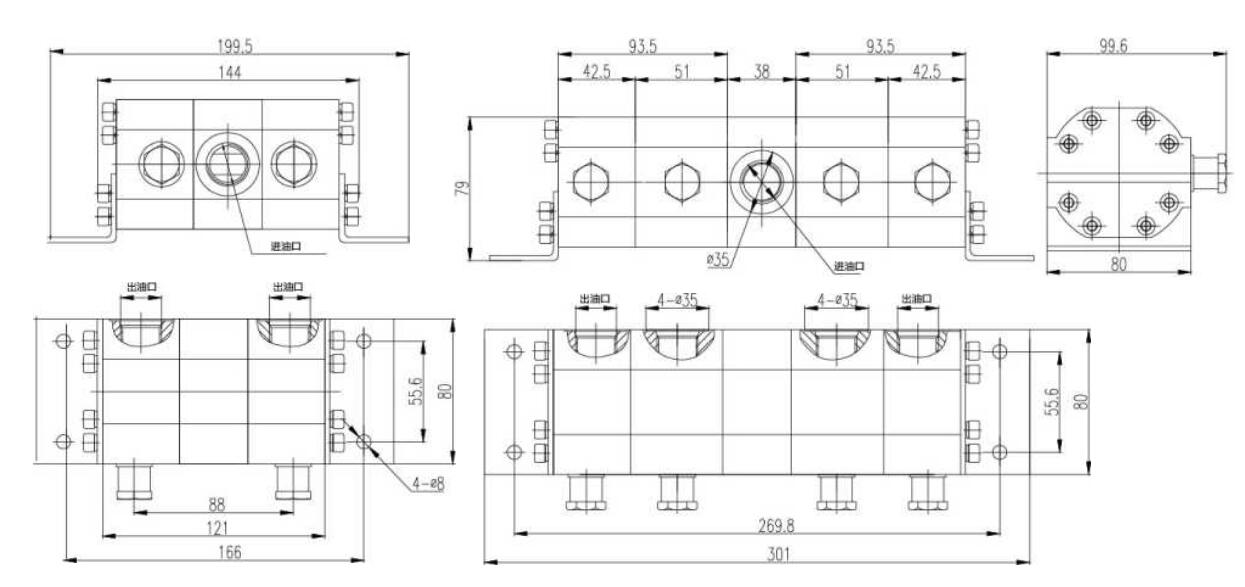

Dimensions
Applications
GRH 1FDF gear type flow divider is widely used in industrial equipment, storage equipment, agricultural machinery, etc.
