Product

For Dock leveler

PDF Download

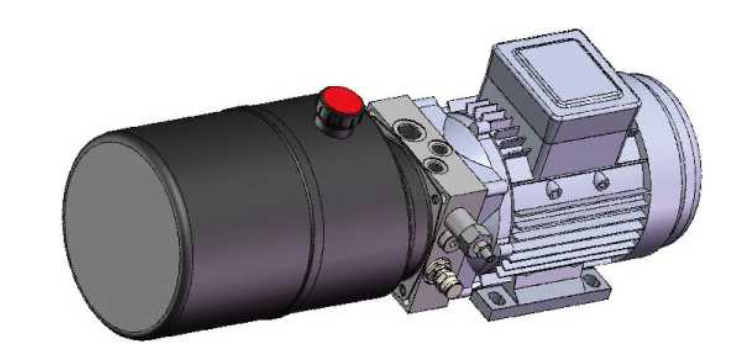

Guorui Hydraulic currently has hundreds of power units, which are combined with high-pressure gear pumps, DC motors, manifolds, tanks and other components. The end mechanism movement can be driven by controlling the start, stop, rotation, and reversal of the hydraulic valve. This product provides the lifting and closing functions of the large and small levelers for the hydraulic dock levelers, and it can control two sets of single-acting cylinders.

  • First class R&D team to achieve a high degree of customization
  • Compatible with complex hydraulic system
  • Compact structure, low noise, high efficiency and energy saving
  • Self-made high-quality core components, stable product performance
  • Ingenious quality, products are sold at home and abroad

Specification

Model Motor Disp. Tank Cap. Pressure Installation Port Size
(cc/r) (L) (MPa)
AC-F32-3.2/E-1.5/380/1450/**-6H-C 380V 1.5Kw 1450RPM 50Hz 3.2 6 16 Horizontal G1/4

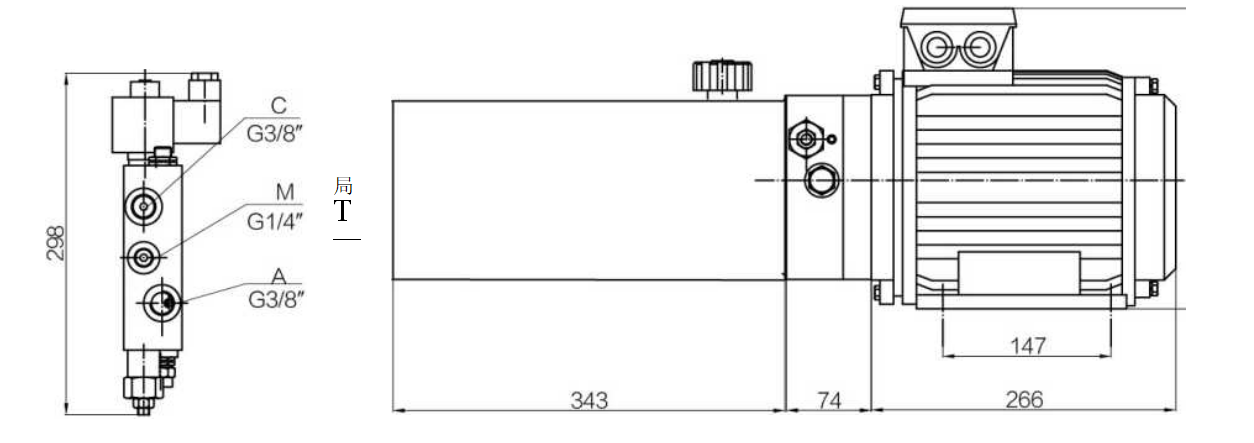

Dimensions

?

Guorui hydraulic compound power unit can be customized according to customer requirements. A variety of functions can be integrated in the system, which is widely used in car tailgates, dock levelers, electric drive aerial work platforms, etc.

Application
