For Automobile Lifting

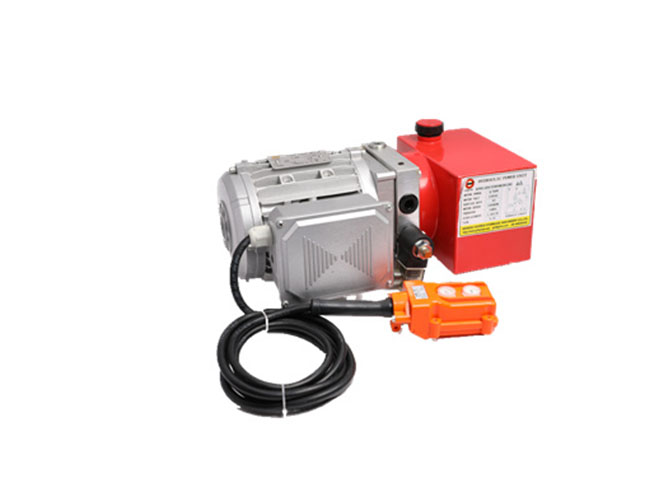

GRH has a few hundred kinds of power packs available for different applications, compactly integrated with high-pressure gear pumps, AC motors, hydraulic valves, fuel tanks and other components. They can be controlled by starting and stopping the power source, reversing and opening and closing the hydraulic valves. Drive and control the working status of the end mechanism. Provides the lifting function for the double-post car lift, and the throttle valve controls the descending speed.
? Customized design
? Compatible with complex hydraulic system
? Compact structure, low noise, high efficiency and energy saving
? Self-made high-quality core components, stable product performance

Specification
Dimensions
Application
Product
Message

Specification

Model	Motor	Disp.	Tank Cap.	Pressure	Installation	Port Size	L(mm)
Model	Motor	(cc/r)	(L)	(MPa)	Installation	Port Size	L(mm)
AC-F5-2.1/F-2.2/220/2850/**-10V-D	220V 2.2Kw 2850RPM 50Hz	2.1	10	20	Vertical	G3/8	440
AC-F5-2.7/F-2.2/220/2850/**-12V-D	220V 2.2Kw 2850RPM 50Hz	2.7	12	18			545
AC-F5-2.1/F-2.2/380/2850/**-10V-D	380V 2.2Kw 2850RPM 50Hz	2.1	10	20			440
AC-F5-2.7/F-2.2/380/2850/**-12V-D	380V 2.2Kw 2850RPM 50Hz	2.7	12	18			545

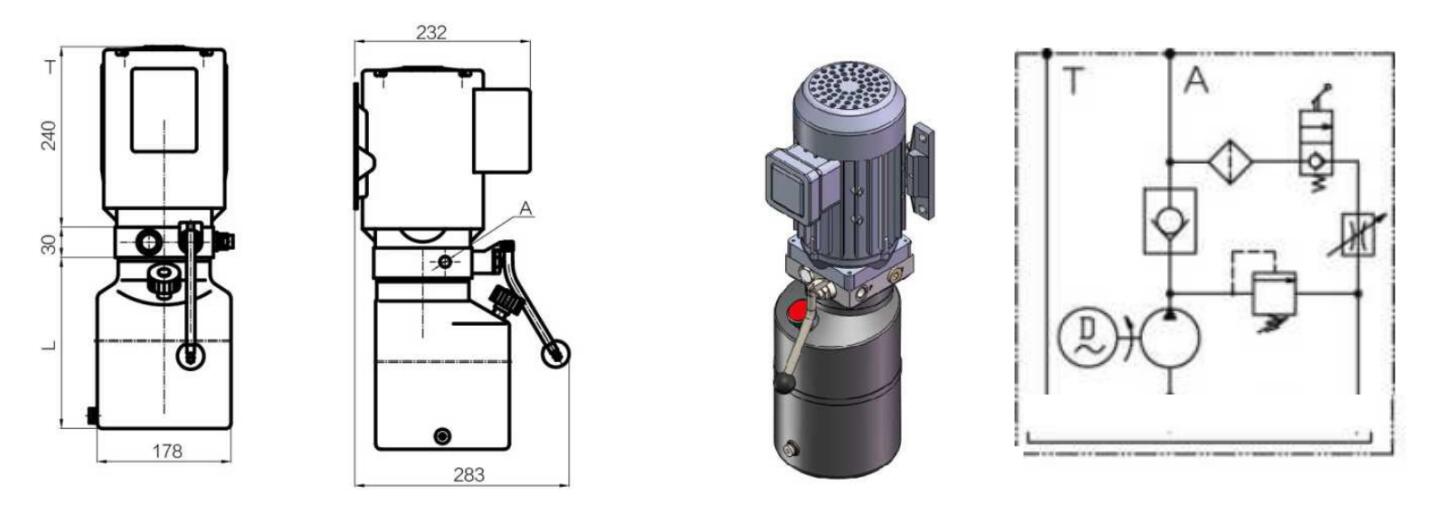

Dimensions

GRH single-acting power unit can be adjusted according to customer requirements. Widely used in the fields of car lifts, scissor lifts, boarding bridges, pallet trucks, stackers, small aerial work platforms, snowplows and lift bed, hospital emergent lifting bed, etc.

GRH can also customize hydraulic power units for you.

Application
