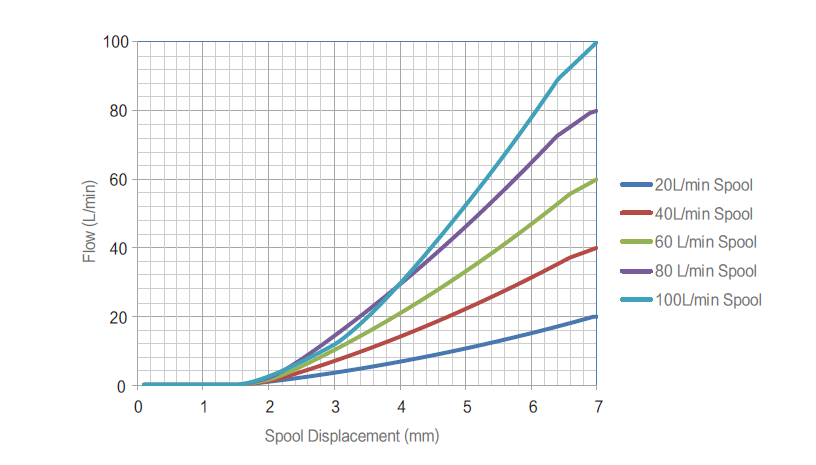

The proportional valve with load sensing  valve is a kind of post- compensated valve, which is developed by GRH 10 years ago,  and has received good response from the market, can achieve proportional flow. The main spool reset adopts a spring reset method, which can provide better flow characteristics and low dynamic force.

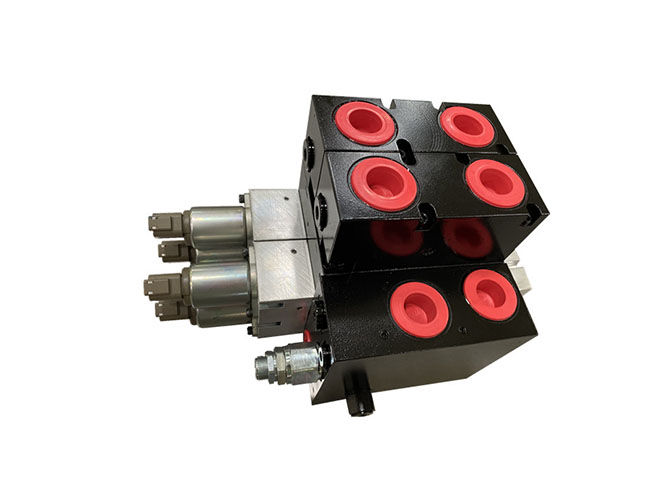

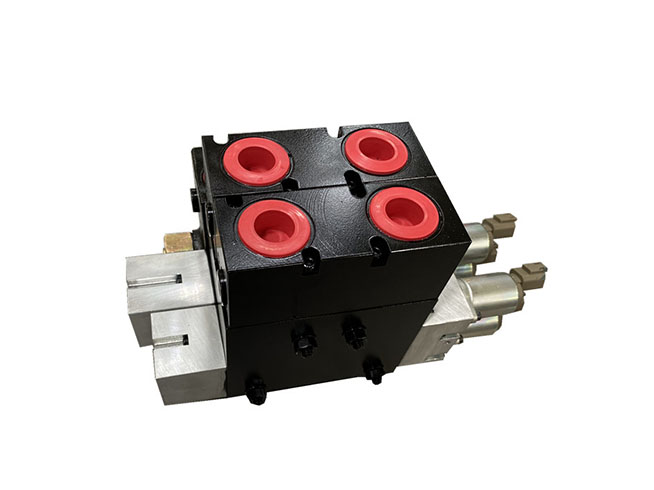

GBV100 load sensing , electro-hydraulic control proportional  valve features as follows:

? The maximum flow rate is 100L, the rated pressure is 31Mpa

? Post compensated technology to achieve synchronous proportional distribution

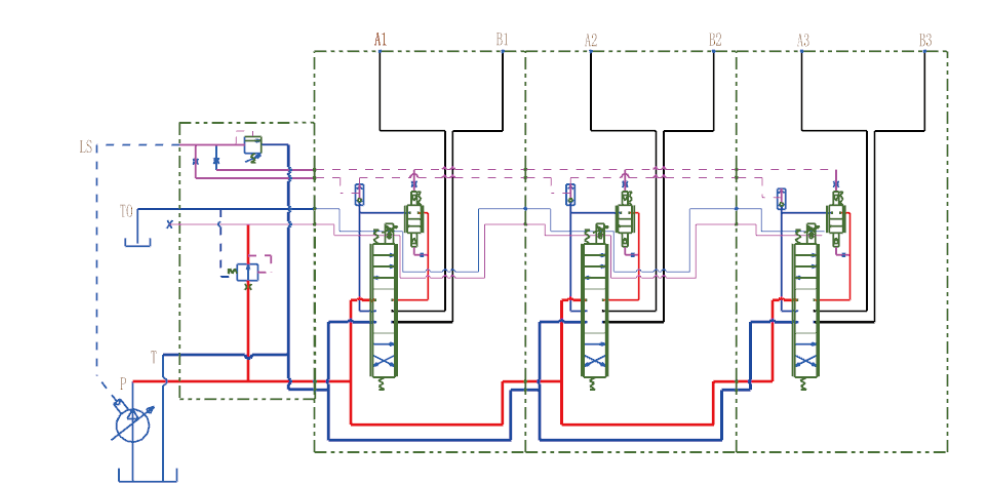

? load sensing proportional control technology to ensure higher precision and higher efficiency control

? Compact size and powerful

? High cost performance, customizable, and complete system supply
