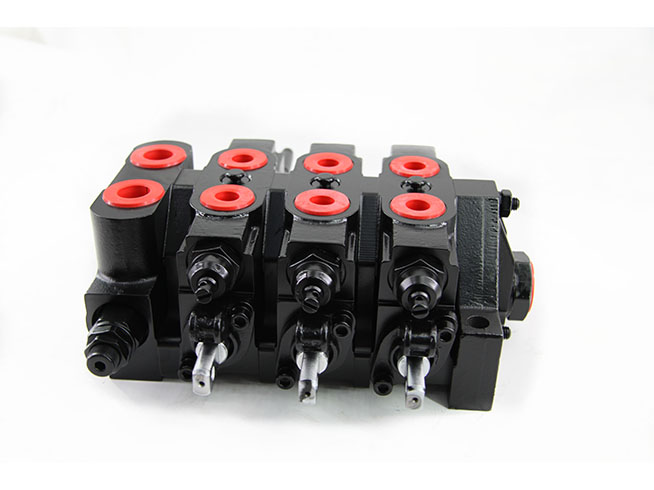

GRH has three series sectional valve, GKV35, GKV50 and GKV80. The multi-way valve of the GKV series is a modular open multi-way valve, modules with different functions can be selected to meet the design of various complex systems.
? Compact size, light weight, meeting the requirements of small installation space
? Powerful function, meet your needs
?Precision machining for very accurate tolerance
cost effective, customizable, and complete system supply
Specification
| Rated Flow Rate | 35L/min | Internal Leakage(@70bar)A、B to T | 15-20 cc/min |
| Maximum Flow Rate | 40L/min | ?Internal Leakage(@70bar)A、B to T | |
| Minimum Flow Rate | 10L/min | with P.O.check | 2-5cc/min |
| Maximum Pressure at P port | 210bar | Spool Stroke（1、2 position） | +7/-7mm |
| Maximum Pressure at A、B port | 210bar | With floating function(1、2 and F position) | +7/-7 -10mm |
Solenoid can be either 12VDC or 24VDC, corresponding current is 0-1.5 or0-0.75 Amp.
Dimensions

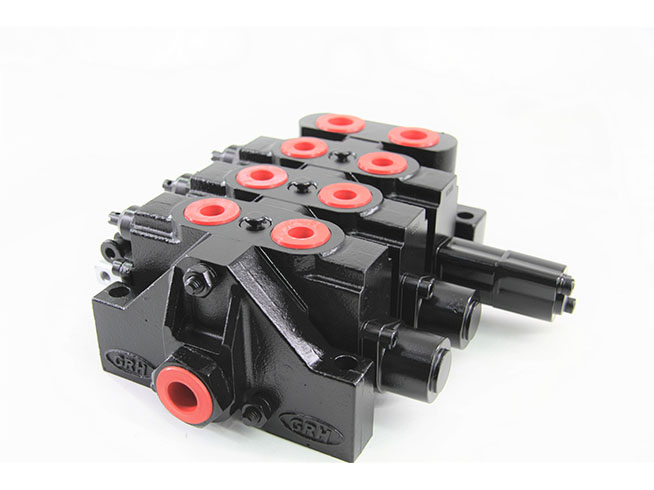

GRH GKV35 series valve, because of its flexible assembly method, can integrate multiple functions. It is widely used in agricultural machinery, engineering machinery, and mobile industry.
Application
GRH,design and manufacture high-quality hydraulic components and system solutions.
