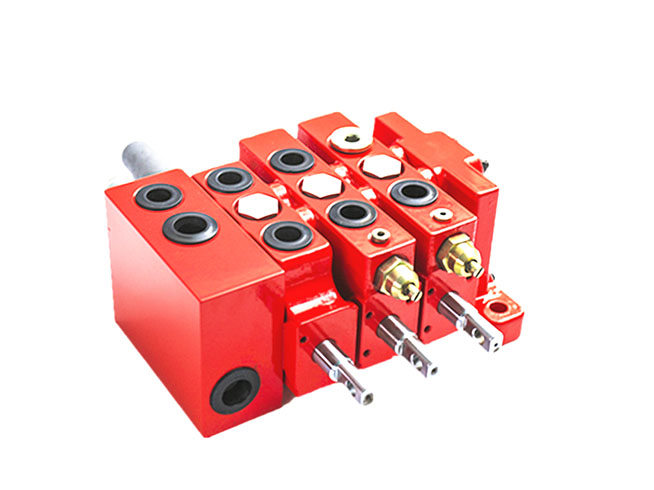

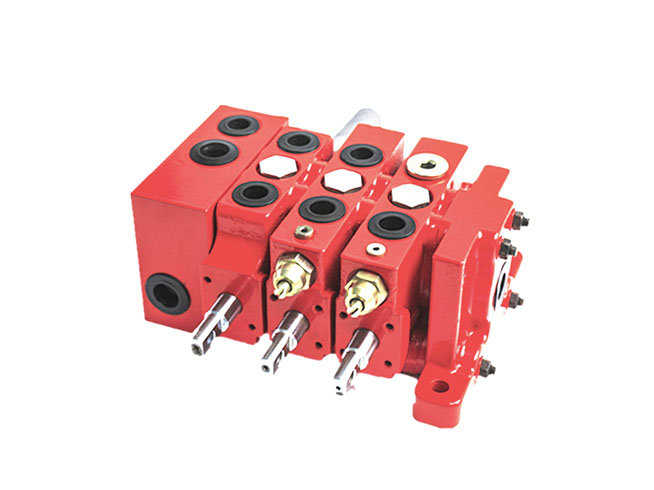

GRH has 3 series of different sectional valve for different applications, GKV35, GKV50 and GKV80. The multi-way valve of the GKV series is a modular open multi-way valve, modules with different functions can be selected to meet the design of various complex systems.
? Compact size, light weight, meeting the requirements of small installation space
? Powerful function for different applications
? High machining accuracy, for an accurate tolerance
? cost effective, customizable, and complete system supply
Specification
| Rated flow rate | 80L/min | Internal leakage(@70bar)A、B to T | 15-20cc/min |
| Maximum flow rate | 100L/min | ?Internal leakage(@70bar)A、B to T | |
| Minimum flow rate | 20L/min | With P.O. check | 2-5cc/min |
| Maximum pressure at P port | 350bar | Spool? stroke (1、2position) | +7/-7mm |
| Maximum pressure at T port | 350bar | With floating function(1、2 and F position) | +71-7 -10mm |

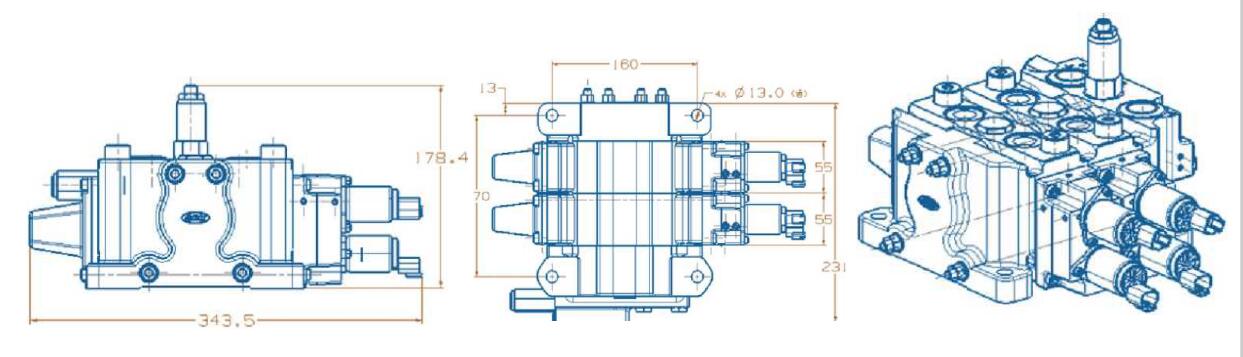

Dimensions
Electro-hydraulic Controlled with Manual Override
GRH GKV80 series sectional valve, because of its flexible assembly method, can integrate multiple functions. Widely used in agricultural machinery, construction machinery, and industrial equipment , etc.
Application
