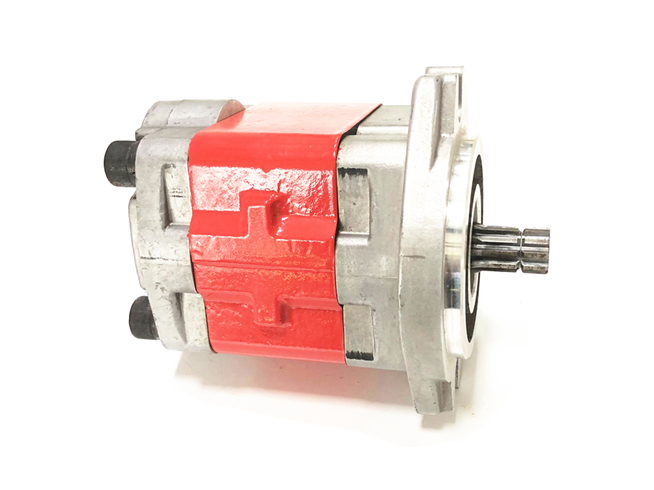

Group 2.5 gear pump : the displacement ranges from 20-40cc/r.
? Axial clearance , automatic compensation function
? Precision machining
? Reliable quality and stable performance
Specification
|
Model |
Displacement
(ml/r) |
Pressure(bar) | Speed(r/min) | L | L1 | Input | Output | |||
| Rated | Peak | Rated | Max | Min | (mm) | (mm) | ||||
| 2.5CPF20F30S24* | 20 | 200 | 250 | 2000 | 3000 | 500 | 124.5 | 61.5 | Φ25 | Φ19 |
| 2.5CPF25F30S24* | 25 | 200 | 250 | 2000 | 3000 | 500 | 130.5 | 64.5 | ||
| 2.5CPF27F30S24* | 27 | 200 | 250 | 2000 | 3000 | 500 | 133 | 65.8 | ||
| 2.5CPF30F30S24* | 30 | 200 | 250 | 2000 | 3000 | 500 | 136.5 | 67.5 | ||
| 2.5CPF32F30S24* | 32 | 200 | 230 | 2000 | 3000 | 500 | 139 | 68.8 | ||
| 2.5CPF36F30S24* | 36 | 200 | 230 | 2000 | 3000 | 500 | 143.5 | 71 | ||
| 2.5CPF40F30S24* | 40 | 160 | 200 | 2000 | 3000 | 500 | 148.5 | 73.5 | ||

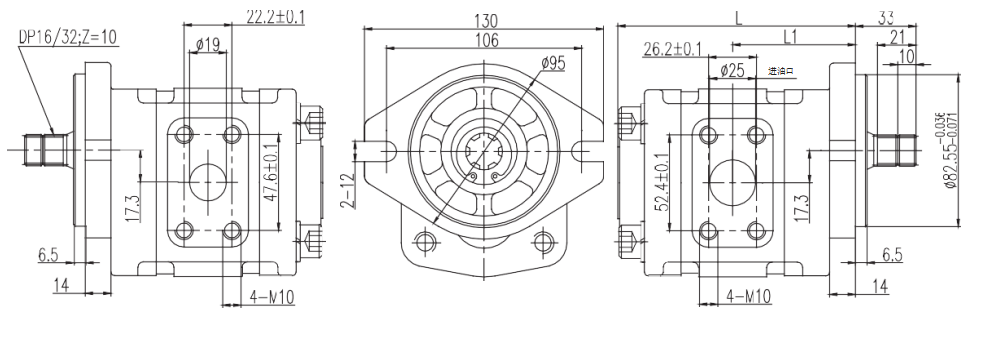

Dimensions
2.5PF series gear pumps are mainly used in forklifts, so they are also called forklift pumps. GRH has three types of 2.5PF gear pumps, different and selected according to the forklift structure, power and application as well.
Application
_副本-2.jpg)
平臺(tái)_副本.jpg)
GRH,design and manufacture high-quality hydraulic components and system solutions.
