Product

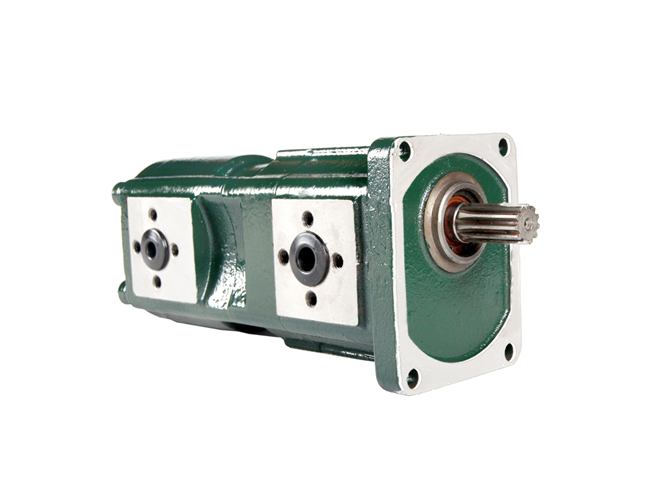

2YBDPF Gear Pump

PDF Download

GRH Multiple hydraulic pumps in aluminum and with external gears, already assembled, belonging to size Group 2. Some parts are available with cast iron flanges. You can choose between standard, at separate-stages, single inlet, and shaped pumps according to the catalog. We appreciate your enquiry through emails.

The performances of Group 2 available are: displacement 4.2cc – 39 cc, maximum pressures up to 300 bar.

Reliable and stable; even at the low speed.

Specification

Model Displacement

(ml/r)

Pressure(bar) Speed

(r/min)

Front Pump Rear Pump
Front Pump Rear

Pump

Rated Peak Rated Peak Rated Max Min
2YBDPF20/10DF54J08* 20 10 200/250 250/300 200/250 250/300 2500 3000

800

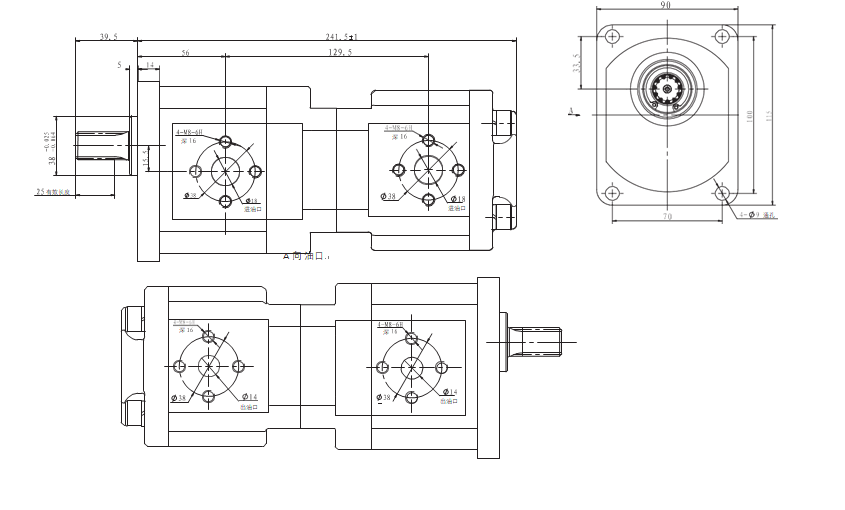

Dimensions

They?are?one?of?the?most?common?types?of?pumps?for?hydraulic?fluid?power?applications.?Gear?pumps?are?also?widely?used?in?hydraulic?installations?to?pump?hydraulic?fluids, such as small vehicles, scissor lit and boom lift, lawn mowers, and electric forklifts, etc. we have gear pump with an integral valves as option for pressure balance design. The cast iron flange gear pump can also be used for the priority pump mounted on the piston pump.

Application
